AETHER

KDA21/KDA31/KDA41/KDA51/KDA61

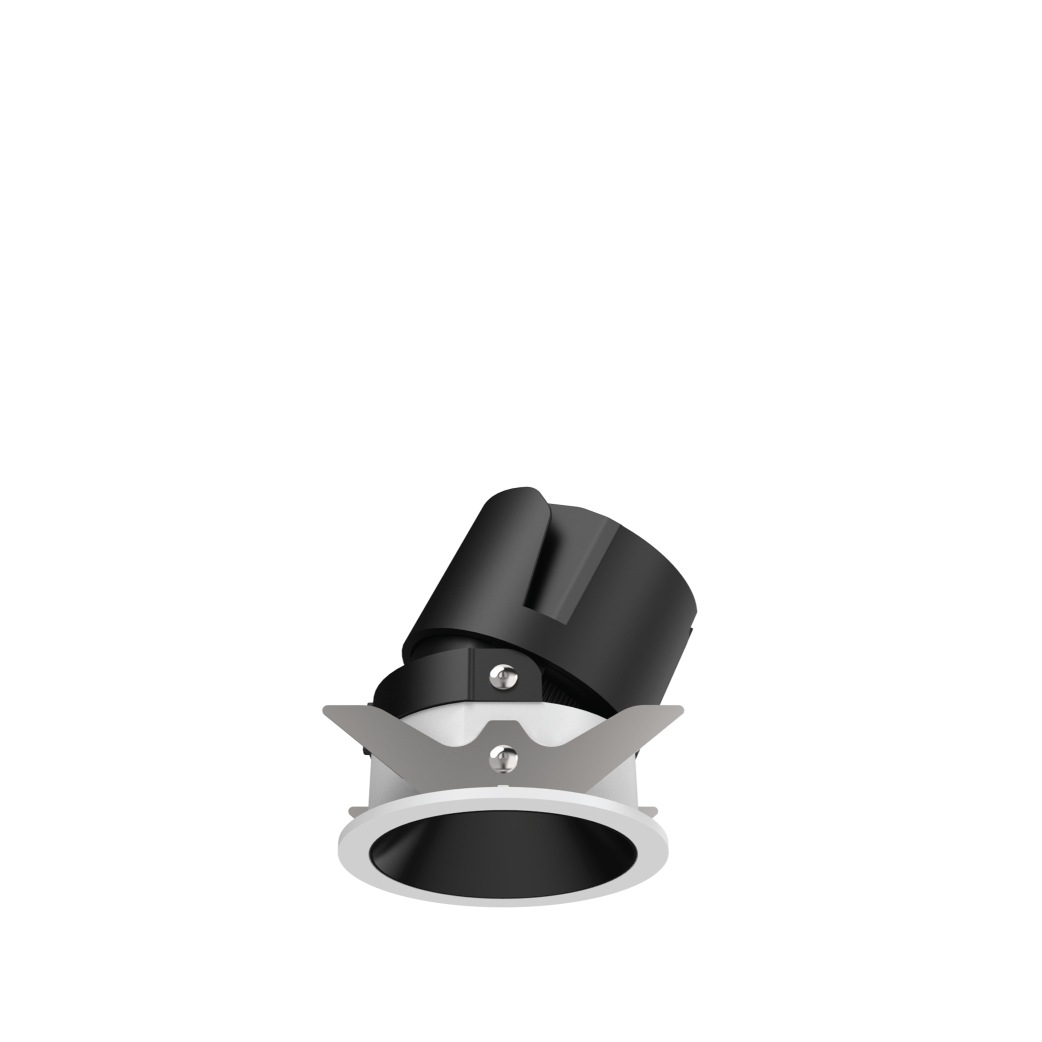

AETHER Series LED Narrow Side Recessed Angled Downlight is perfectly integrated with the ceiling after installation. Good anti-glare performance and color consistency control, with a comfortable light effect, mainly for hotels, clubs and other indoor places.

Features

Specifications

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

KDA

Downlight A series

2 2

1 Round Trim

LM04 COB 4W

LM07 COB 7W

E On-Off

D 0-10V Dimming

1 15°

2 24°

3 36°

5 50°

27 2700K

30 3000K

35 3500K

40 4000K

50 5000K

B Black

S Specular

WT White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

KDA

Downlight A series

3 3

1 Round Trim

LM07 COB 7W

LM10 COB 10W

LM13 COB 13W

E On-Off

D 0-10V Dimming

1 15°

2 24°

3 36°

5 50°

27 2700K

30 3000K

35 3500K

40 4000K

50 5000K

B Black

W White

S Specular

T Black Step

H White Step

WT White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

KDA

Downlight A series

4 4

1 Round Trim

LM18 COB 18W

LM25 COB 25W

E On-Off

D 0-10V Dimming

1 15°

2 24°

3 36°

5 50°

27 2700K

30 3000K

35 3500K

40 4000K

50 5000K

B Black

S Specular

WT White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

KDA

Downlight A series

5 5

1 Round Trim

LM25 COB 25W

LM32 COB 32W

E On-Off

D 0-10V Dimming

1 15°

2 24°

3 36°

5 50°

27 2700K

30 3000K

35 3500K

40 4000K

50 5000K

B Black

S Specular

WT White

BK Black

Example: KDA31-LM07E-130SWT, refer to the product specification.

Documents

Specifications

Installation

Distribution Curve

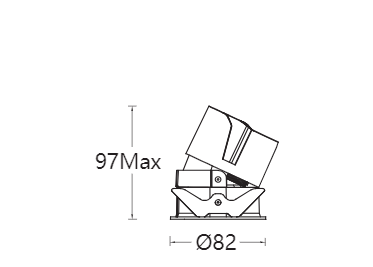

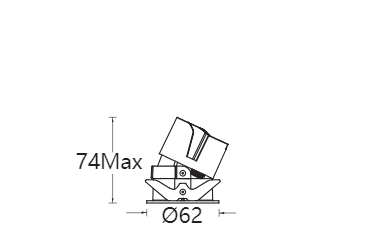

Product Diagram
