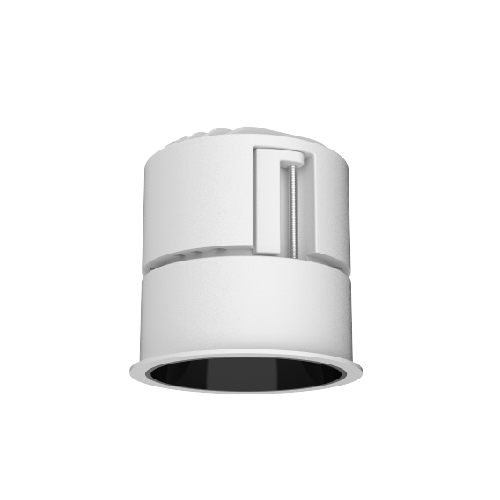

ER22/ER23/ER24/ER25 IP65 Recessed Round Downlight
The LANNE PRO downlight features a exquisite and simple exterior design with precise light distribution performance. With the SUBROSA hidden light technology, the series highly emphasize the anti-glare feature. Recommended for hotels and commercial public areas and other spaces.
| Model | Size | Comment | LED Power | Driver | Beam | CCT | Reflector | Finish |
ER2 | 2 2” | F Frame | 08 8W | EL ON-OFF 220V AC Power Supply DL 0-10V Dimming 220V AC Power Supply | 1 15° 2 24° 3 36° 4 48° | 27 2700K 30 3000K 40 4000K | B Black S Specular | WT White |
| Model | Size | Comment | LED Power | Driver | Beam | CCT | Reflector | Finish |
ER2 | 3 3” | F Frame | 13 13W 18 18W | EL ON-OFF 220V AC Power Supply DL 0-10V Dimming 220V AC Power Supply | 1 15° 2 28° 3 38° 4 45° 5 58° | 27 2700K 30 3000K 40 4000K | B Black S Specular | WT White |
| Model | Size | Comment | LED Power | Driver | Beam | CCT | Reflector | Finish |
ER2 | 4 4” | F Frame | 18 18W 25 25W | EL ON-OFF 220V AC Power Supply DL 0-10V Dimming 220V AC Power Supply | 2 20° 3 30° 4 40° 5 50° 6 60° | 27 2700K 30 3000K 40 4000K | B Black S Specular | WT White |
| Model | Size | Comment | LED Power | Driver | Beam | CCT | Reflector | Finish |
ER2 | 5 5” | F Frame | 32 32W 40 40W | EL ON-OFF 220V AC Power Supply DL 0-10V Dimming 220V AC Power Supply | 1 15° 2 24° 3 36° | 27 2700K 30 3000K 40 4000K | B Black S Specular | WT White |
Example: ER25F-32EL-130BWT
