ELC703/ELC705/ELC710 Low Power Linear Light

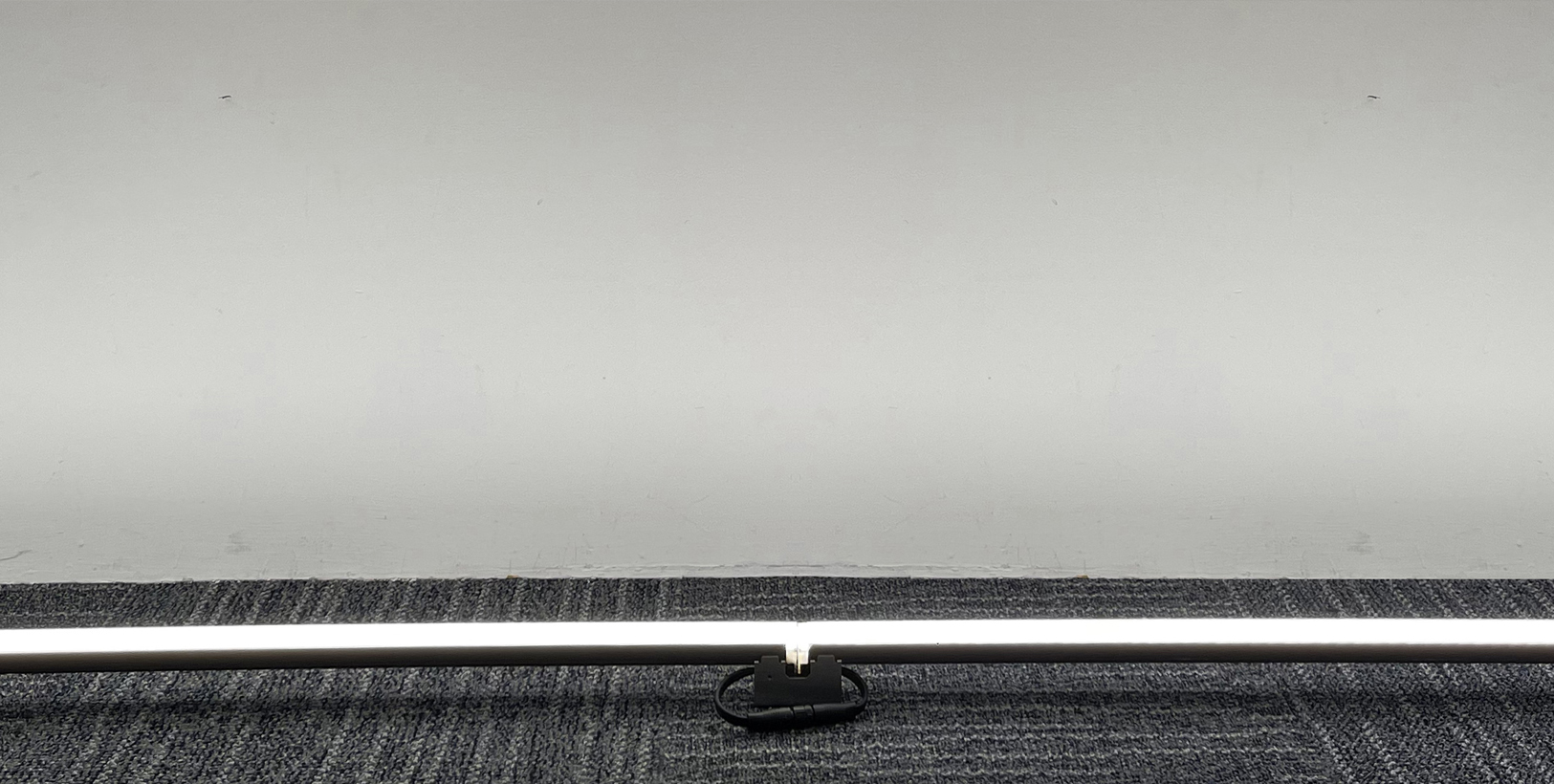

The slender body and neat appearance ensure easy assembly to the facade, the luminaire's cable is from the bottom and is flexible to meet project requirements for power cable. DC24V ensures effective transmission of power supply and signals with low power loss. DMX512 dimming control with automatic addressing function. The bracket is easy to install and disassemble, simplifying maintenance . At the same time, the vertical direction is clamped by the bracket, which ensures that the light is not easy to fall in the vertical direction. Unique fixed bracket design with safety wirerope to improve safety.
New two-color one-piece extrusion process, streamlined design, slender, simple, pure, the light body is only 1.9cm wide, 2.9cm high, small and exquisite, comes with flexible cable, can be easily installed on the external wall, andperfect integration with the building architecture.
ACCENT C7 3-side light out version, no visual blind area, can attract the eyes and feet of people or tourists in different directions. Transparent end cap design, continuous installation without dark area, providing more comfortable visual effect.
Up to 14 meters of fixtures can be continuously connected in series.
Nantong Grand Theater
| Model | Length (mm) | Power (W) | LEDs (Quantity) | Max Lumens(lm) | Control Systems | Beam | Phase Controller(m) | CCT | Finish |
ELC703-03 | 250 | 03(Max) | 24 | 177 | ET ON-OFF 24V DC Powe Supply | P 160° | 0 W/O Phase | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power (W) | LEDs (Quantity) | Max Lumens(lm) | Control Systems | Beam | Phase Controller(m) | CCT | Finish |
ELC703-03 | 250 | 03(Max) | 24 | 177 | MT DMX512 Dimming 24V DC Power Supply | P 160° | 1 1 Phase 8 8 Phase | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power (W) | LEDs (Quantity) | Max Lumens(lm) | Control Systems | Beam | Phase Controller(m) | CCT | Finish |
ELC705-06 | 500 | 06(Max) | 48 | 354 | ET ON-OFF 24V DC Power Supply | P 160° | 0 W/O Phase | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power (W) | LEDs (Quantity) | Max Lumens(lm) | Control Systems | Beam | Phase Controller(m) | CCT | Finish |
ELC705-06 | 500 | 06(Max) | 48 | 354 | MT DMX512 Dimming 24V DC Power Supply | P 160° | 1 1 Phase 8 8 Phase | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power (W) | LEDs (Quantity) | Max Lumens(lm) | Control Systems | Beam | Phase Controller(m) | CCT | Finish |
ELC710-12 | 1000 | 12(Max) | 96 | 709 | ET ON-OFF 24V DC Power Supply | P 160° | 0 W/O Phase | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power (W) | LEDs (Quantity) | Max Lumens(lm) | Control Systems | Beam | Phase Controller(m) | CCT | Finish |
ELC710-12 | 1000 | 12(Max) | 96 | 709 | MT DMX512 Dimming 24V DC Power Supply | P 160° | 1 1 Phase 8 8Phase | 27 2700K 30 3000K 40 4000K | BK Black |
Example: ELC710-12ET-P027BK
