70mm Pendant

OP1LS/OP1LD

VOLO

OP1LS/OP1LD

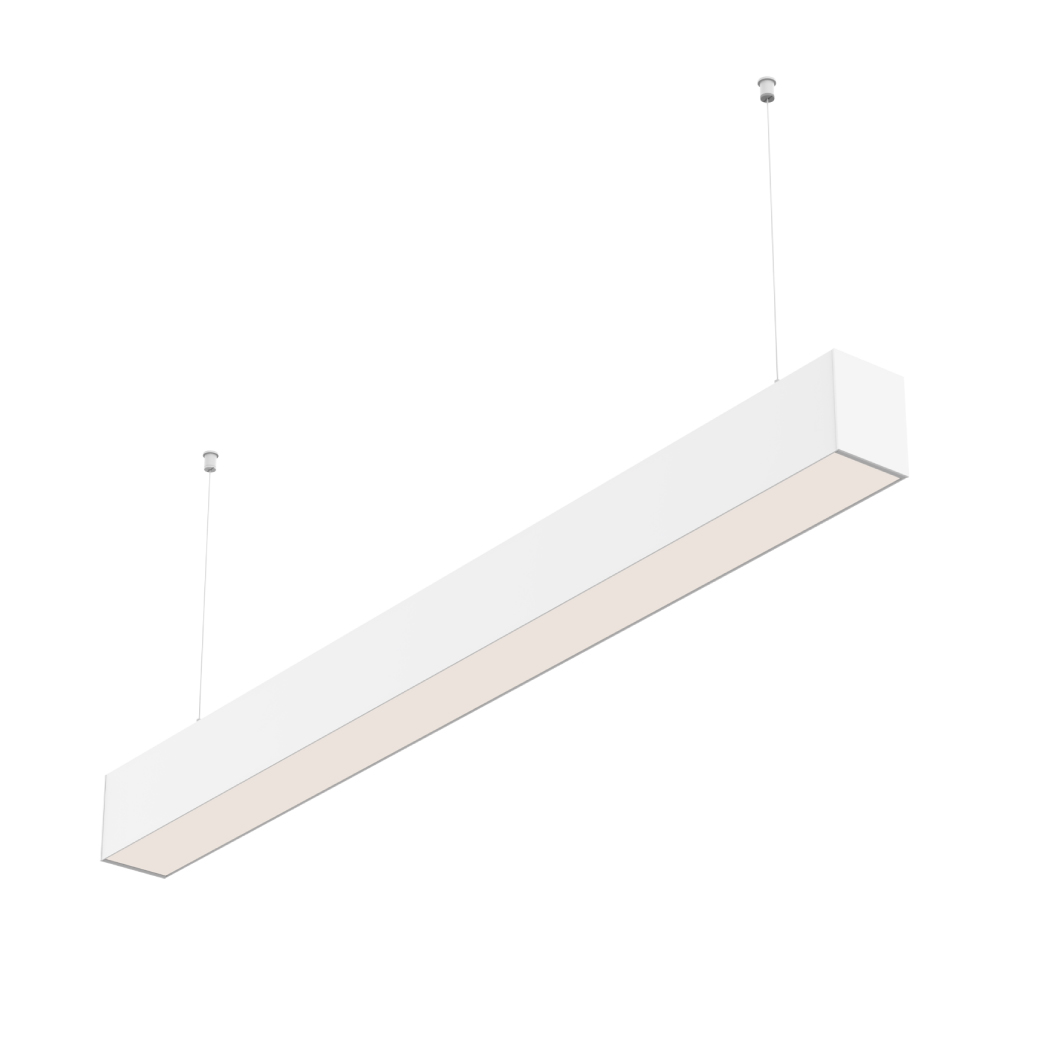

VOLO Pendant Linear Light, with aluminum body, compact and aesthetic appearance. LED light source, with good heat dissipation. Energy efficient, good anti-glare, customized lengths and connectable at the beginning and end. Suitable for commercial office lighting applications.

Features

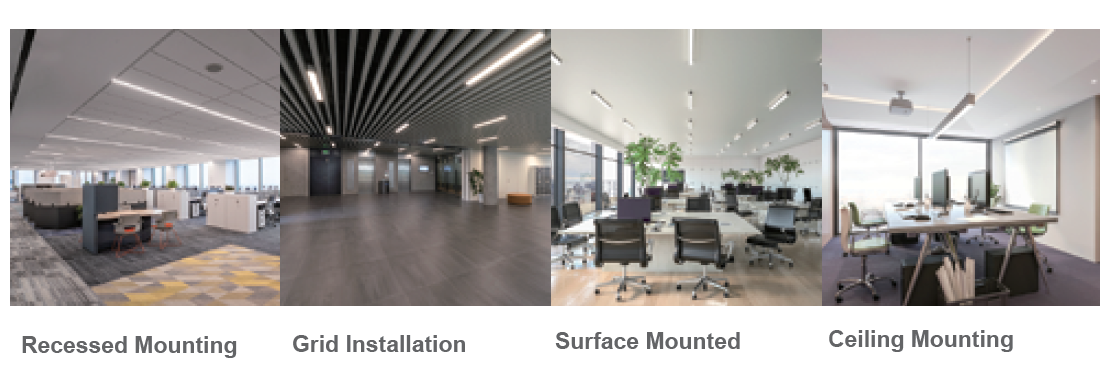

Various Mounting Options Available for VOLO Series

Recessed / Grille Mount / Surface Mount / Suspended Mount

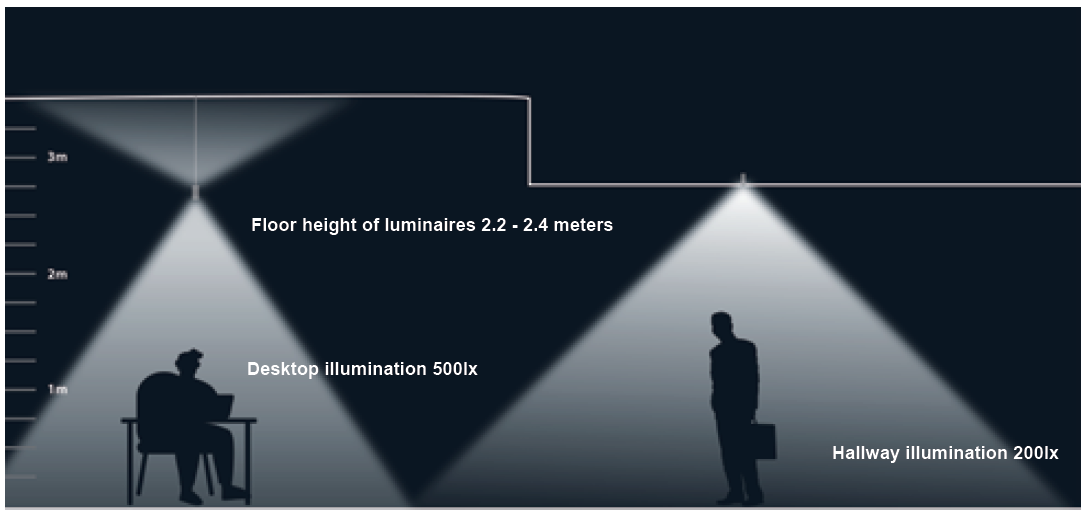

Recommended Luminaire Mounting Height

Wide Range of Accessory Options for Different Applications

The patented track connector ensures that the luminaire can be individually adapted to the needs of different settings.

Specifications
Model
CommentLength(mm)Power(W)DriverBeamCCTFinish

OP1L

S Single Directional

Downward-illuminated

12  1200

40  40W

E  On-Off

D  0-10V Dimming

A  DALI

P  Matte

Y  Prism

30  3000K

35  3500K

40  4000K

50  5000K

WT  White

BK  Black

Model
CommentLength(mm)Power(W) DriverBeam UpBeam DownCCTFinish

OP1L

D Double  Directional

Two-sided illuminated

12  1200

50  50W

(Down:40W, Up:10W)

E  On-Off

D  0-10V Dimming

A  DALI

F Frosted



P  Matte

Y  Prism

30  3000K

35  3500K

40  4000K

50  5000K

WT  White

BK  Black

Example: OP1LD-1250E-FY40WT
