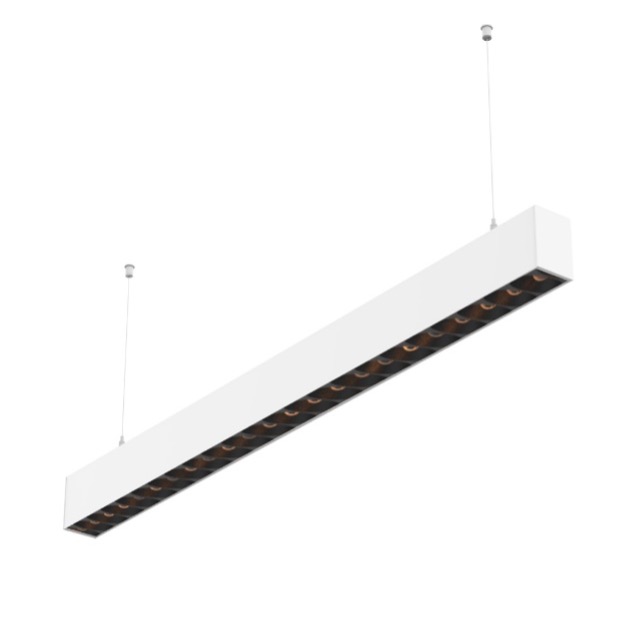

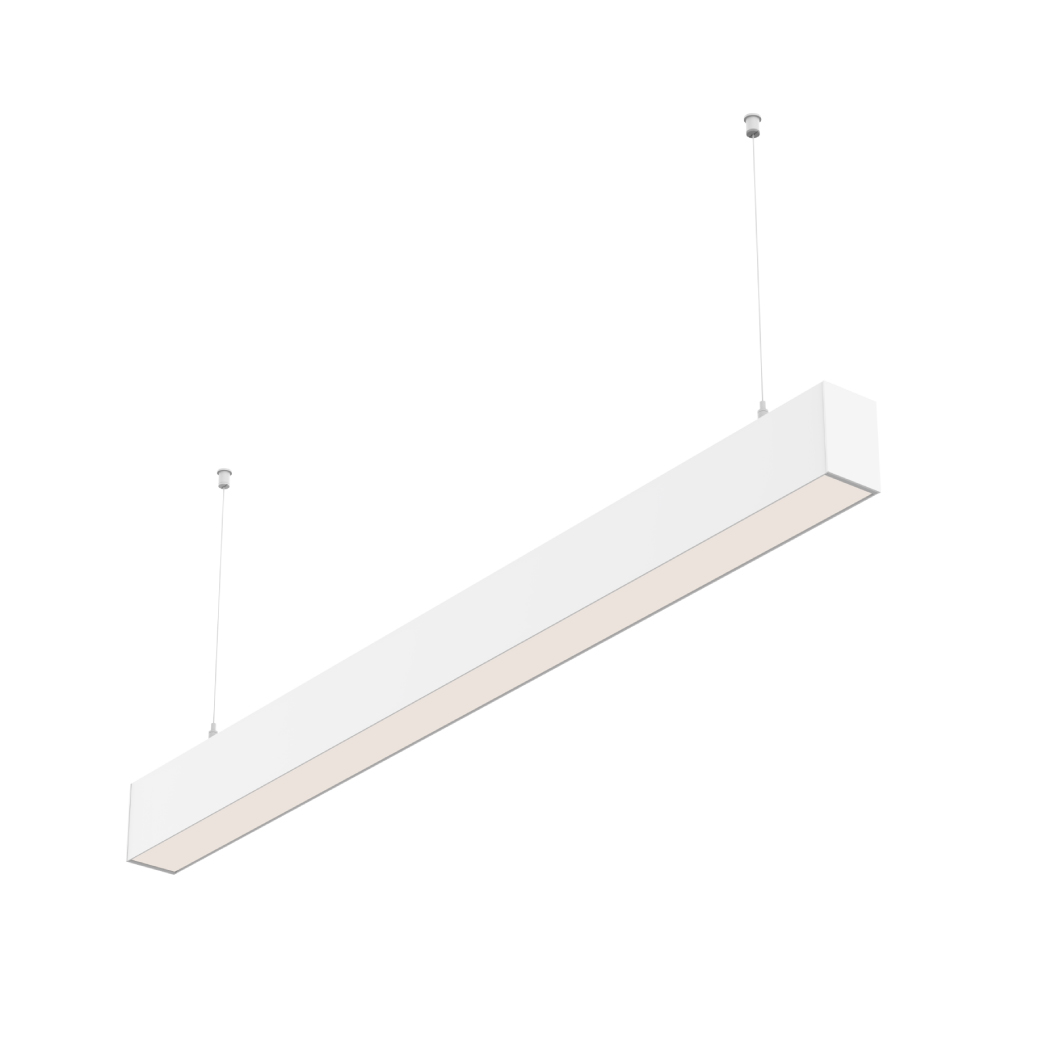

VOLO Pendant Linear Light, with aluminum body, compact and aesthetic appearance. LED light source, with good heat dissipation. Energy efficient, good anti-glare, customized lengths and connectable at the beginning and end. Suitable for commercial office lighting applications.

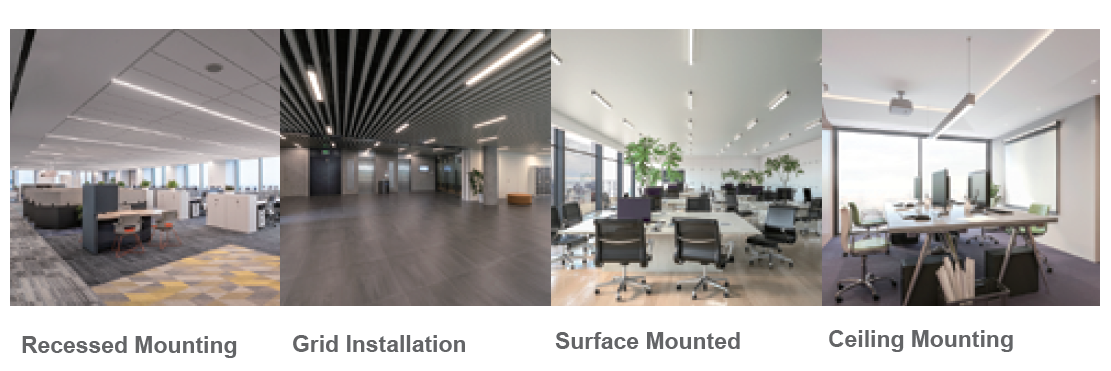

Recessed / Grille Mount / Surface Mount / Suspended Mount

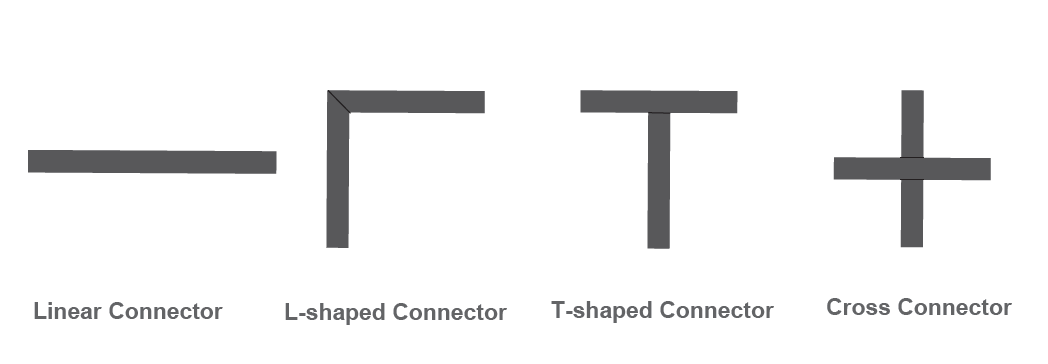

The patented track connector ensures that the luminaire can be individually adapted to the needs of different settings.

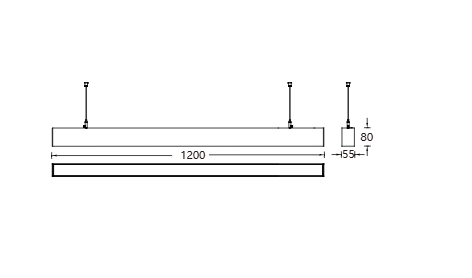

| Model | Comment | Length(mm) | Power(W) | Driver | Beam | CCT | Finish |
OP1M | S Single Directional Downward-illuminated | 12 1200 | 35 35W | E On-Off D 0-10V Dimming A DALI | P Matte Y Pism | 30 3000K 35 3500K 40 4000K 50 5000K | WT White BK Black |

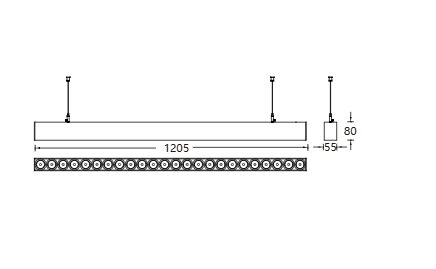

| Model | Comment | Length(mm) | Power(W) | Driver | Beam | CCT | Finish |
OP1M | S Single Directional Downward-illuminated | 12 1205 | 35 35W | E On-Off D 0-10V Dimming A DALI | 2 24° 3 36° 4 45° | 30 3000K 35 3500K 40 4000K 50 5000K | WT White BK Black |
| Model | Comment | Length(mm) | Power(W) | Driver | Beam Up | Beam Down | CCT | Finish |
OP1M | D Double Directional Two-sided illuminated | 12 1200 | 45 45W (Down:35W,Up:10W) | E On-Off D 0-10V Dimming A DALI | F Frosted | P Matte Y Prism | 30 3000K 35 3500K 40 4000K 50 5000K | WT White BK Black |
| Model | Comment | Length(mm) | Power(W) | Driver | Beam Up | Beam Down | CCT | Finish |
OP1M | D Double Directional Two-sided illuminated | 12 1205 | 45 45W (Down:35W,Up:10W) | E On-Off D 0-10V Dimming A DALI | F Frosted | 2 24° 3 36° 4 45° | 30 3000K 35 3500K 40 4000K 50 5000K | WT White BK Black |
Example: OP1MD-1245E-240WT
