35mm Surface Mounted

OC1N

VOLO

OC1N

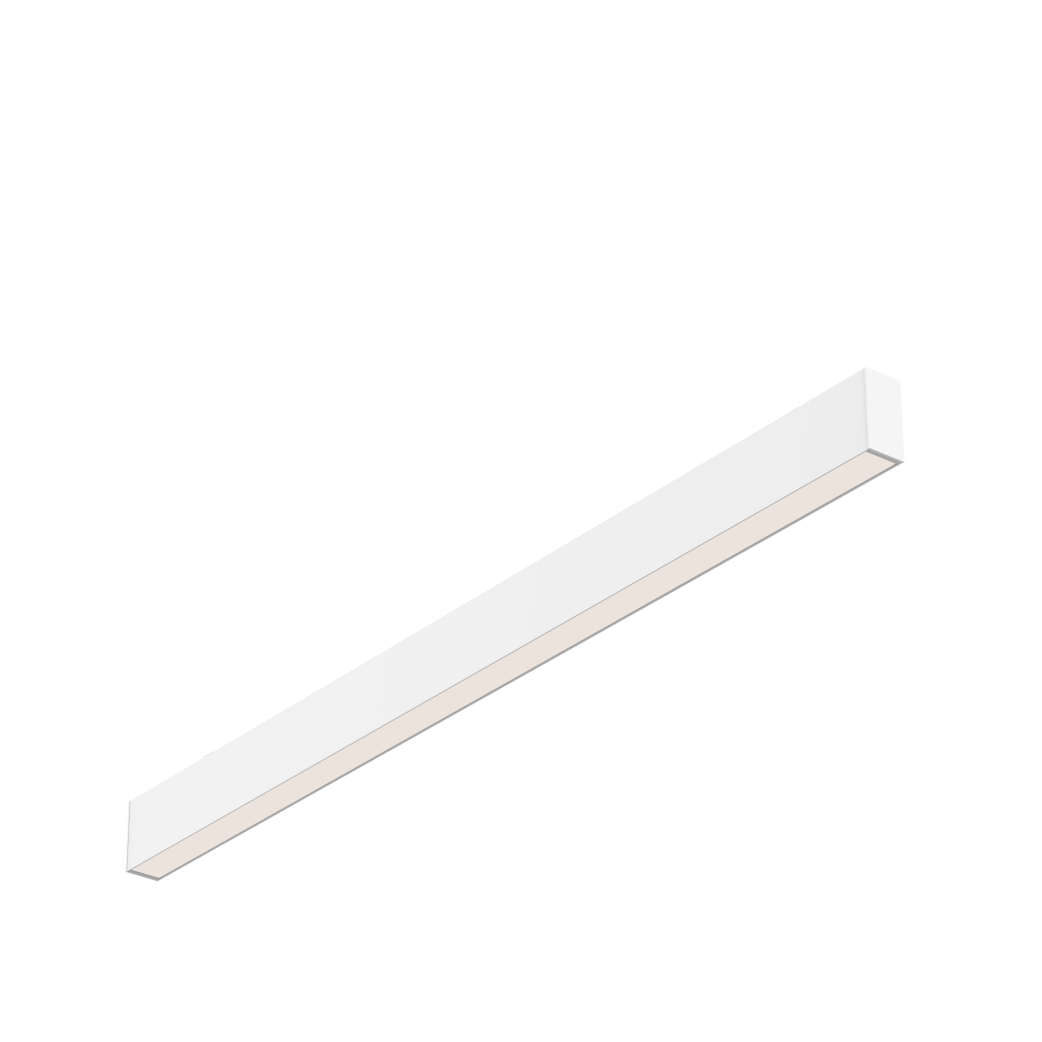

VOLO Pendant Linear Light, with aluminum body, compact and aesthetic appearance. LED light source, with good heat dissipation. Energy efficient, good anti-glare, customized lengths and connectable at the beginning and end. Suitable for commercial office lighting applications.

Features

Various Mounting Options Available for VOLO Series

Recessed / Grille Mount / Surface Mount / Suspended Mount

Recommended Luminaire Mounting Height

Wide Range of Accessory Options for Different Applications

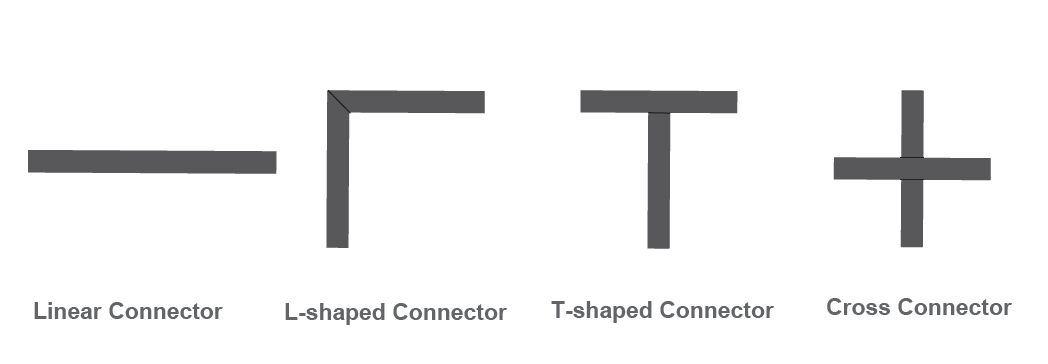

The patented track connector ensures that the luminaire can be individually adapted to the needs of different settings.

Specifications
Model
Length(mm)PowerDriverBeamCCTFinish

OC1N

12 1200

25 25W

E ON-OFF

D 0-10V Dimming

A DALI

P   Matte

Y   Prism

30   3000K

35   3500K

40   4000K

50   5000K

WT   White

BK   Black

Example: OC1N-1225E-Y40WT
