EF4TI/EF4NI/EF4SI/EF4MI/EF4LI

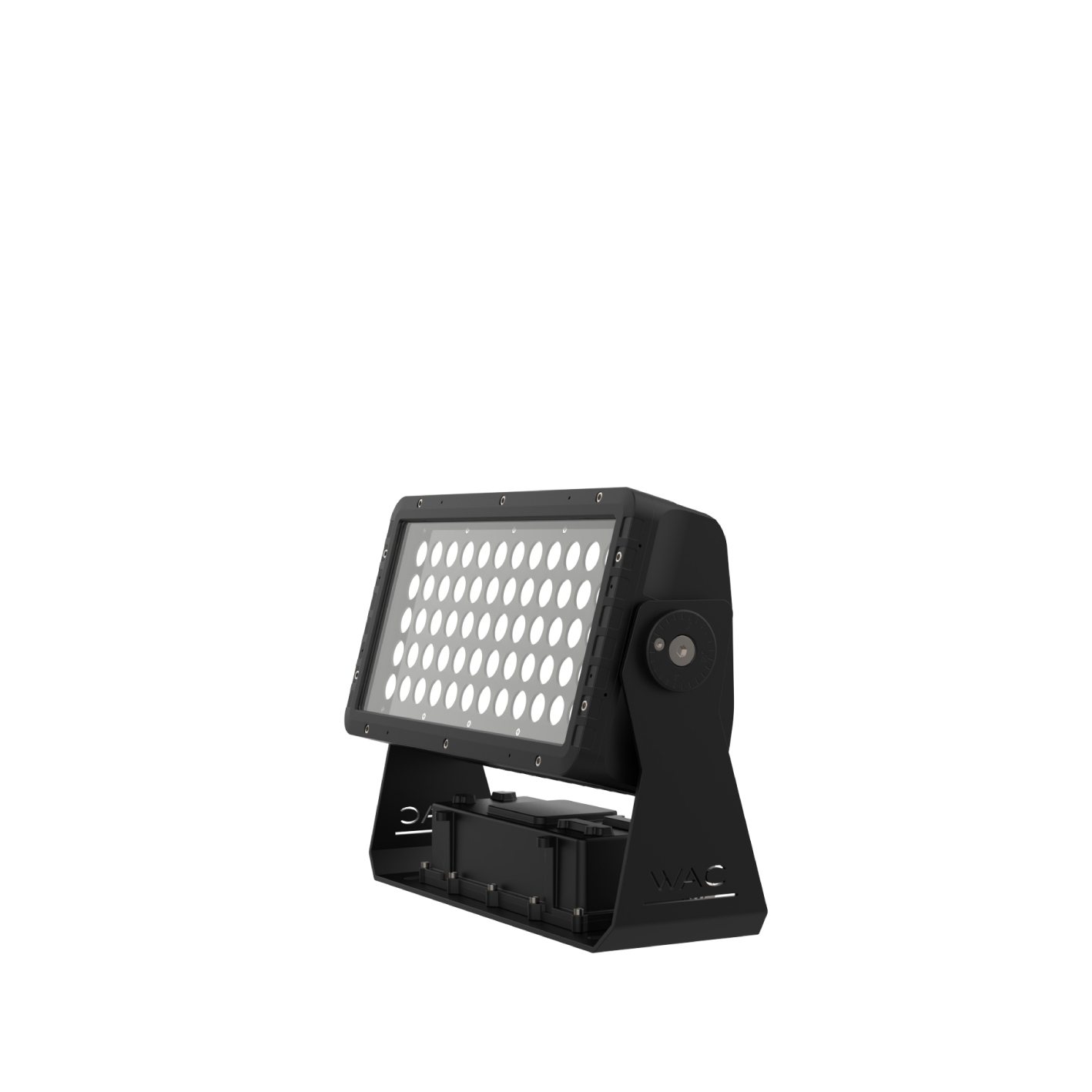

SHINE PRO Series are professional LED floodlights designed by WAC for high-end outdoor applications. The unique shape and all-glass surface design is simple, generous, modern and aesthetic, which is more suitable for the current and future architectural trends. Equipped with breathing valve, which effectively balances the internal and external air pressure to prevent condensation. Fully integrated aerodynamic principle with unique optimal heat dissipation structure to enhance the heat dissipation performance of the luminaires and extend the service life of the LED luminaires. SHINE PRO series luminaire is available in various sizes, angles and wattages to meet different lighting applications.
A wide range of size options and power coverage to meet the diverse lighting needs of major bridges and building facades.

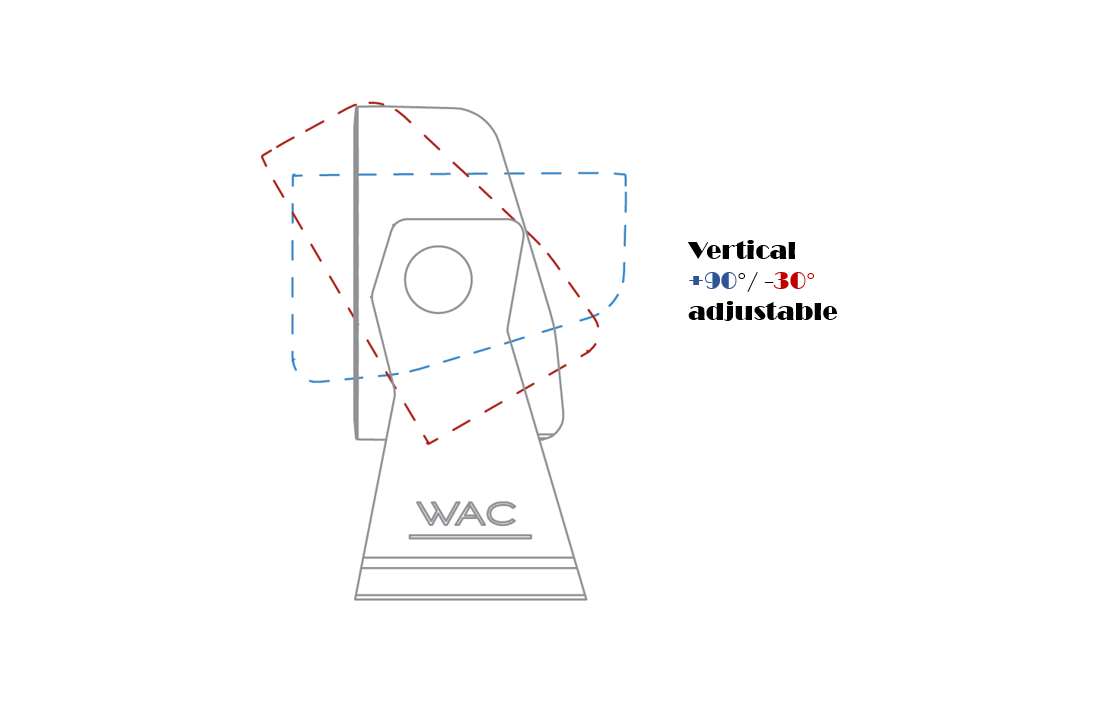

Vertical +90°/-30° adjustable. Available with ultra-narrow angle accessory. It ensures high power and precise illumination of the illuminated surface at a small angle and reduces the need to adjust the fixture's position repeatedly.
Model | Power | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EF4TI | 130 130W(Max) | 60 | 10504 | EL ON-OFF 220V AC Power Supply ML DMX512 | S 7° 1 12° 2 21° 3 36° 5 50° J 14° x 56° | 27 2700K 30 3000K 40 4000K | BK Black |
Model | Power | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EF4NI | 190 190W(Max) | 96 | 14779 | EL ON-OFF 220V AC Power Supply ML DMX512 | S 9° 1 12° 2 25° 3 36° 5 50° J 14° x 56° | 27 2700K 30 3000K 40 4000K | BK Black |
Model | Power | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EF4SI | 280 280W(Max) | 108 | 21417 | EL ON-OFF 220V AC Power Supply ML DMX512 | S 9° 1 12° 2 24° 3 37° 5 50° J 19° x 56° | 27 2700K 30 3000K 40 4000K | BK Black |
Model | Power | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EF4MI | 380 380W(Max) | 192 | 28274 | EL ON-OFF 220V AC Power Supply ML DMX512 | S 9° 1 12° 2 25° 3 36° 5 50° J 14°*56° | 27 2700K 30 3000K 40 4000K | BK Black |
Model | Power | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EF4LI | 560 560W(Max) | 216 | 42834 | EL ON-OFF 220V AC Power Supply ML DMX512 | S 9° 1 12° 2 24° 3 37° 5 50° J 19° x 56° | 27 2700K 30 3000K 40 4000K | BK Black |
Example: EF4LI-560EL-130BK
