DLH22/DLH32

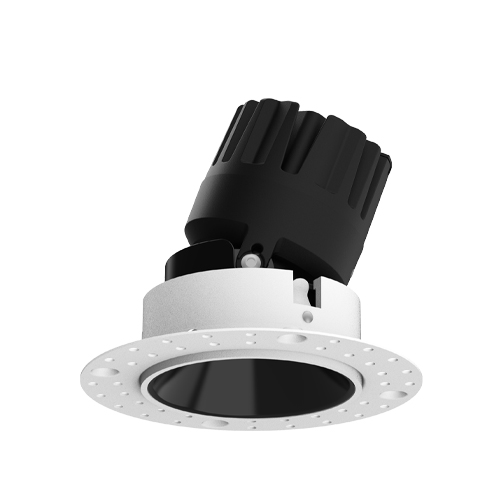

ELANA PRO Round Recessed Downlight is the perfect integration of downlighting and angle adjustment. The precise light distribution through the lens and the high quality reflector provide a comfortable visual experience and ensure the integrity of the light spot. Particularly suitable for high-end hotels, commercial and office public space.
Combines stable downlighting with flexible angular performance.

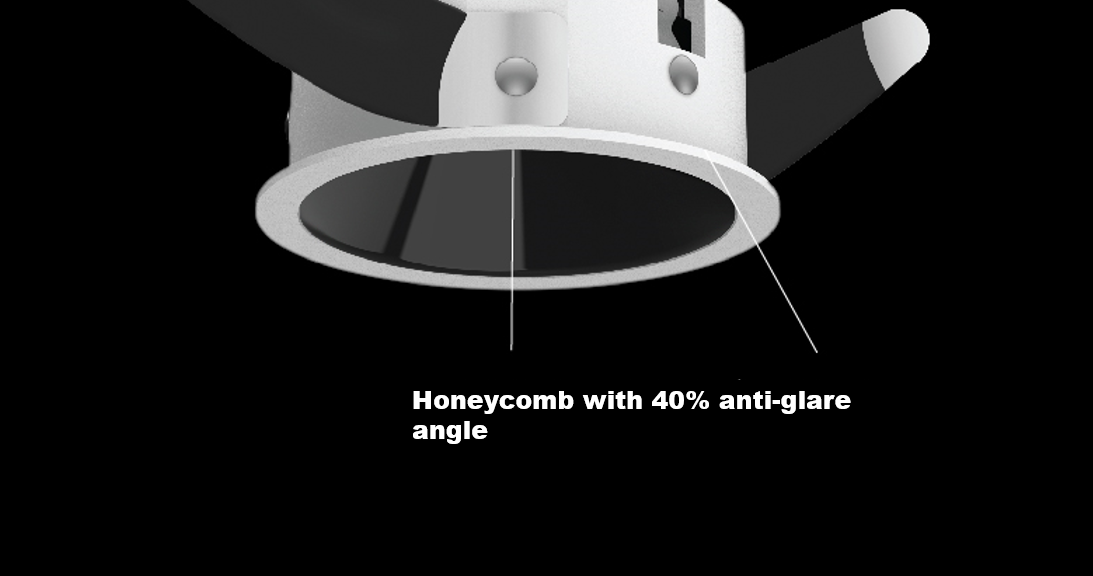

Honeycomb + 40° anti-glare angle reflector. Double guarantee for ultimate visual comfort.
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLH Downlight H series | 2 2” | 2 Round Trimless | LM05 COB 5W LM07 COB 7W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 40 4000K | B Black S Specular W White | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLH Downlight H series | 2 2” | 2 Round Trimless | LM07 COB 7W | A DALI N Driver | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 40 4000K | B Black S Specular W White | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLH Downlight H series | 3 3” | 2 Round Trimless | LM07 COB 7W LM10 COB 10W LM13 COB 13W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° 4 45° | 27 2700K 30 3000K 40 4000K | B Black S Specular | WT White |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLH Downlight H series | 3 3” | 2 Round Trimless | LM13 COB 13W | A DALI N Driver | 1 15° 2 24° 3 36° 4 45° | 27 2700K 30 3000K 40 4000K | B Black S Specular | WT White |
Example: DLH32-LM10-E230SWT.
15° factory default honeycomb, other angles not available.
