Fuego Compact Stainless Steel Body Finish. Compact round design, IP67/IP68 rated, IK08 impact resistant. Resistant to pressurization up to 500 kg, pre-buried cylinder mounting, snap-on mounting.

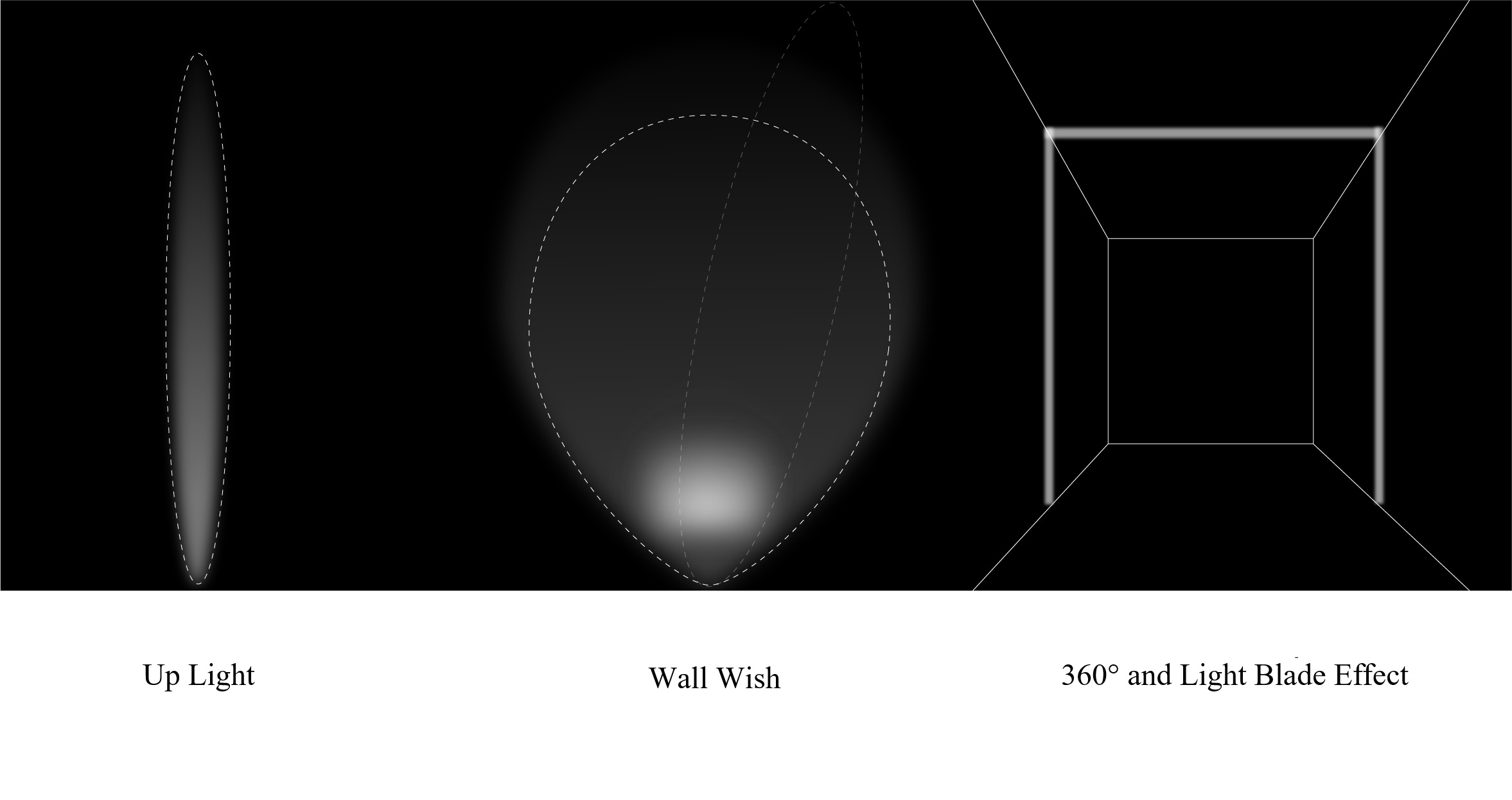

Uplight/ Wall wash/ Surface-illuminated
Built-in anti-siphon injection molding device to enhance the waterproof performance of luminaires
Model | Power (W) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish | |
EIR2NF-04 | 4(Max) | 119 | ET ON-OFF 12-24V DC Power Supply MT DMX512 Dimming 12-24V DC Power Supply DT 0-10V Dimming 12-24V DC Power Supply
| W Wall Washer L LASER BLADE S 6° 1 10° 2 20° 3 30° | 27 2700K 30 3000K 40 4000K | SS Stainless Steel | |
Model | Power (W) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish | |
EIR2NF-04 | 4(Max) | 87 | MT DMX512 Dimming 24V DC Power Supply | 1 14° 3 35° 5 50° F 14X34° | F3 RGBW (3000K) F4 RGBW (4000K) F6 RGBW (5700K) | SS Stainless Steel | |
Model | Power (W) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish | |
EIR4NF-04 | 4(Max) | 119 | ET ON-OFF 12-24V DC Power Supply MT DMX512 Dimming 12-24V DC Power Supply DT 0-10V Dimming 12-24V DC Power Supply
| W Wall Washer L LASER BLADE S 6° 1 10° 2 20° 3 30° | 27 2700K 30 3000K 40 4000K | SS Stainless Steel | |
Model | Power (W) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish | ||
EIR4NF-04 | 4(Max) | 87 | MT DMX512 Dimming 24V DC Power Supply | 1 14° 3 35° 5 50° F 14X34° | F3 RGBW (3000K) F4 RGBW (4000K) F6 RGBW (5700K) | SS Stainless Steel | ||
Example: EIR4NF-04MT-1F3SS
