Trinity Chain Lights

ELS420

Trinity Chain Lights

ELS420

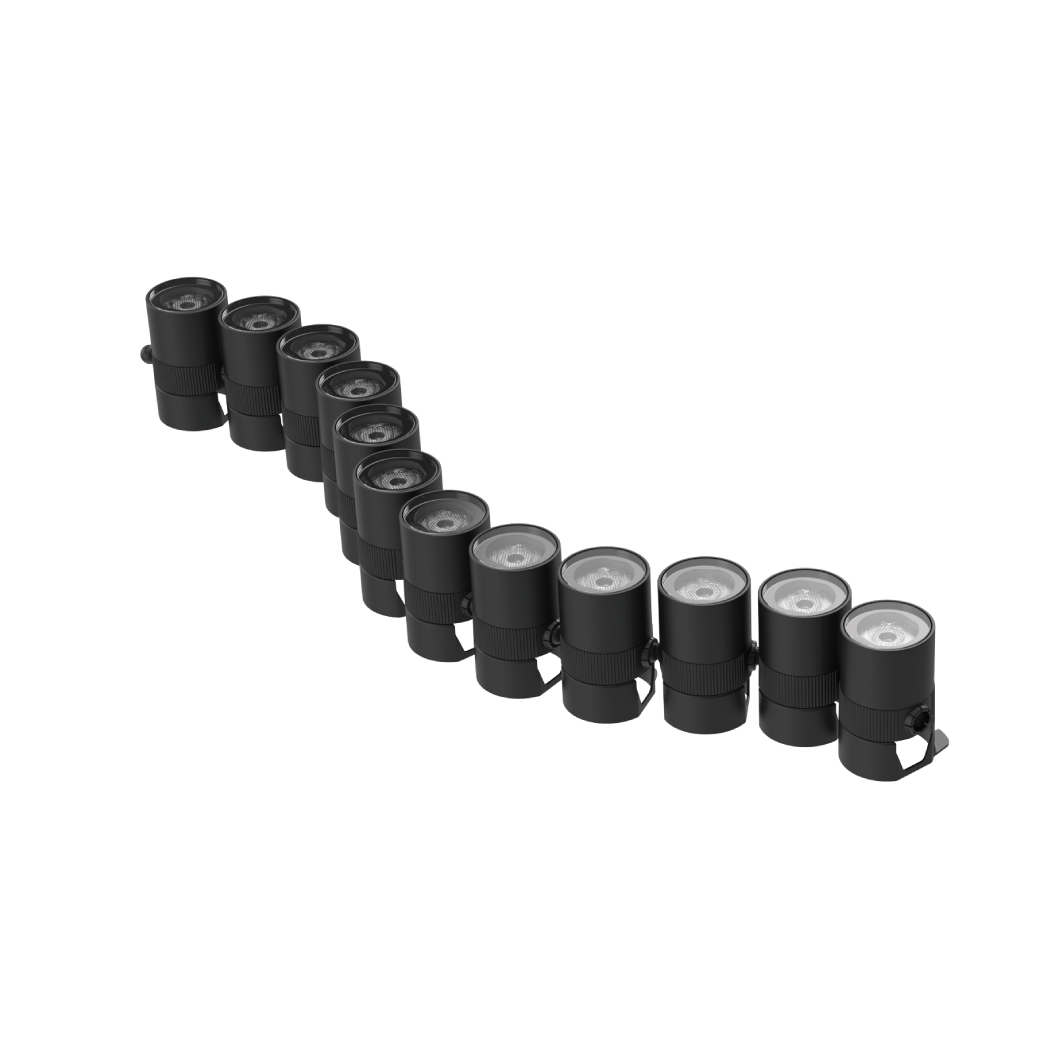

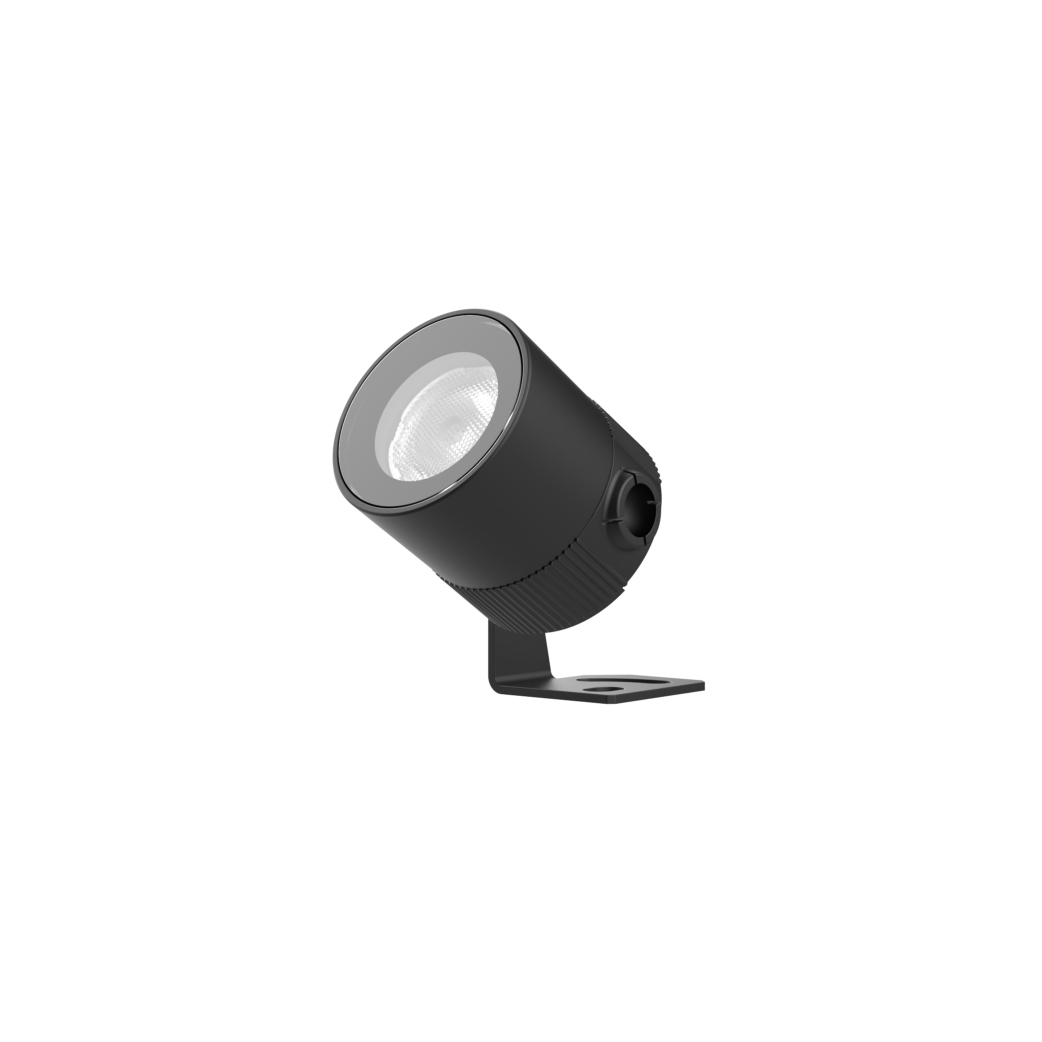

Trinity is a professional LED flexible linear light designed by WAC for high-end outdoor lighting venues. With its exquisite and compact shape and all-glass surface design, Trinity is simple, generous, fashionable and beautiful, which is more suitable for the current and future architectural trends. Multi-directional angle adjustable to meet different applications. Available with a wide range of accessories, the luminaires are ideal for a variety of installation needs and lighting application solutions.

Features

Great Flexibility

Available for multi-dimensional adjustment of the projection direction, applicable to complex application scenarios

A wide range of mounting accessories

Specifications

Model

Power

LEDs

(quantity)

Max Lumens

(lm)

Control Systems

Beam

CCT

Finish

ELS420

96W(Max)

48

/

MT DMX512

48V DC Power Supply

1       13°

2       29°

5       50°

J      22°x29°

F30 RGBW(3000K)

F40 RGBW(4000K)

F60 RGBW(6000K)

BK Black

Model

Power

LEDs

(quantity)

Max Lumens

(lm)

Control Systems

Beam

CCT

Finish

ELS420

96W(Max)

48

/

ET ON-OFF

48V DC Power Supply

MT DMX512

48V DC Power Supply

S        7°

1       12°

2       21°

3       36°

5       50°

J      14°x56°

27 2700K

30 3000K

40 4000K

BK Black

Example: ELS420-96MT-1F30BK
