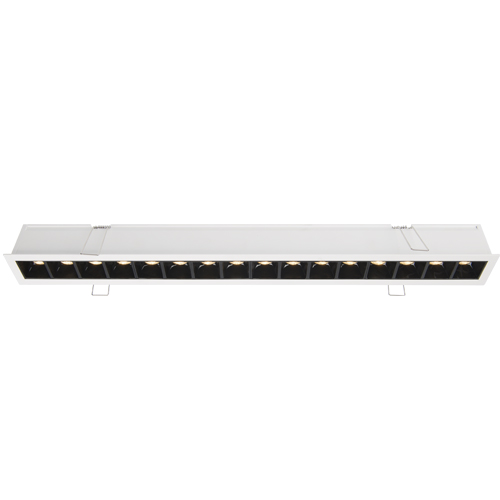

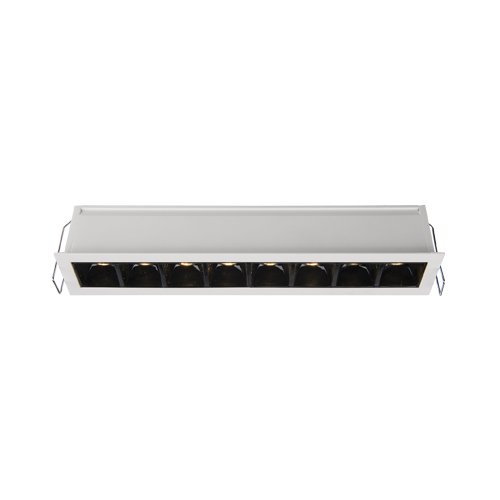

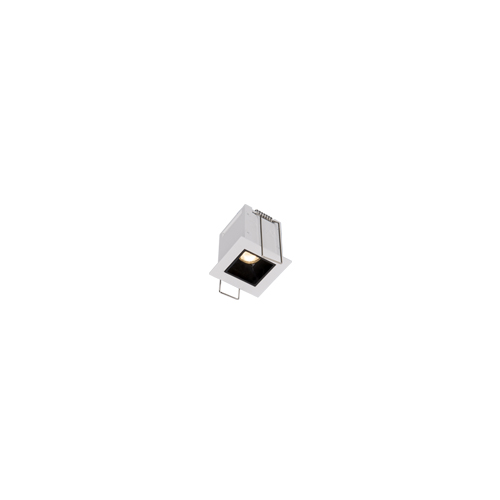

LLAR5 Recessed Linear Downlight
Recessed linear light LIGNE Pro downlight series, 1, 4, 8, 16pcs LED configurations, corresponding to different power and meter lengths, three standard beam angles optional, which can not only create a sense of spatial hierarchy but also can be as basic lighting, it can be used as a replacement for downlights.

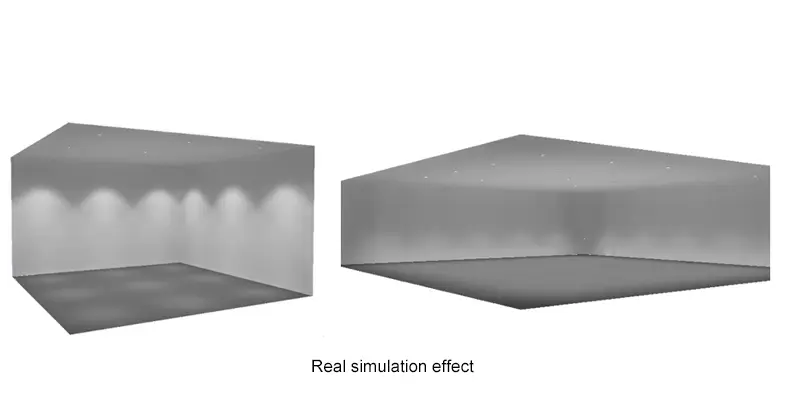

Can create a layered sense of space and take into account the application of basic lighting, can completely replace the downlight to use.

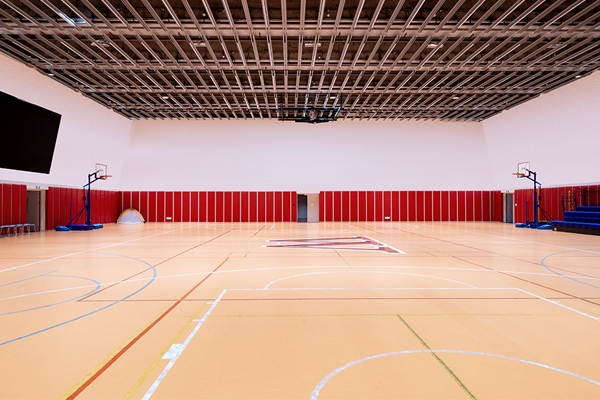

Shenzhen Huitong International School
Model | LED Power | Driver | CCT | Beam | Reflector | Finish |
LLAR5 Linear Downlights A series Recessed mounting | LD02 2W | E On-Off
| 27 2700K 30 3000K 40 4000K | 1 15° 2 28° 3 36° | B Black | WT White |
Model | LED Power | Driver | CCT | Beam | Reflector | Finish |
LLAR5 Linear Downlights A series Recessed mounting | LD08 8W | E On-Off D 0-10V Dimming
| 27 2700K 30 3000K 40 4000K | 1 15° 2 28° 3 36° | B Black | WT White |
Model | LED Power | Driver | CCT | Beam | Reflector | Finish |
LLAR5 Linear Downlights A series Recessed mounting | LD16 16W | E On-Off D 0-10V Dimming
| 27 2700K 30 3000K 40 4000K | 1 15° 2 26° 3 36° | B Black | WT White |
Model | LED Power | Driver | CCT | Beam | Reflector | Finish |
LLAR5 Linear Downlights A series Recessed mounting | LD32 32W | E On-Off D 0-10V Dimming
| 27 2700K 30 3000K 40 4000K | 1 15° 2 26° 3 36° | B Black | WT White |
Example: LLAR5-LD32E-271BWT
