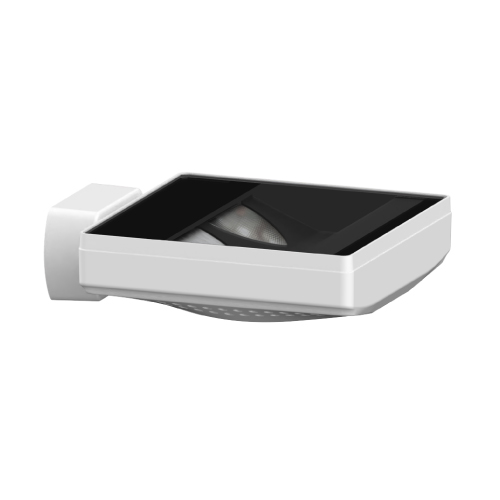

EW3C Wall Mounted Ceiling Wall Washer
Wall mounted, ultra-thin and streamlined design, well integrated with the overall space. Luminaire configuration horizontal and vertical two kinds of light distribution system, with the angular structure design, excellent optical performance and flexible humanized installation accessories can bring users a perfect light environment experience, suitable for public high space functional lighting.
The design of wall washing system, precise control of the light path, to ensure that the light effciency is maximized under the constraint conditions. Horizontal (W-type) & vertical (U-type) wall washer, two choices, to establish a perfect wall washer lighting system.

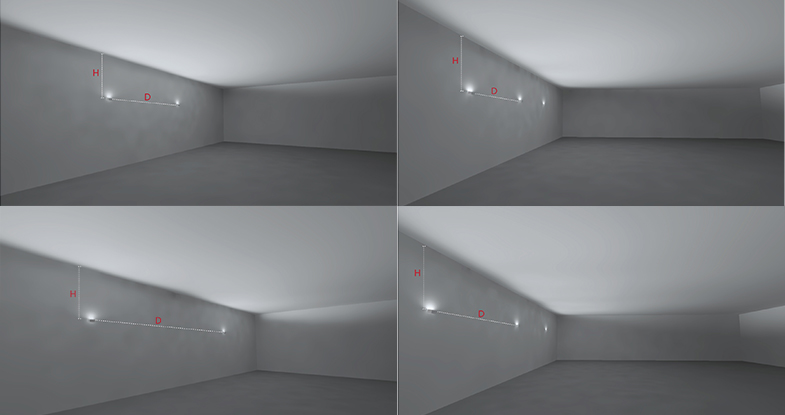

Left is the horizontal wall washing H:D=1:2.5 & 1:4.5 effect comparison; right is the vertical wall washing H:D=1:2 & 1:3 effect comparison.
Chengdu Luhu Food Island
| Model | Comment | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EW3 | C Ceiling Wash | 40 40(Max) | COB | 2251 | EL ON-OFF 220V AC Power Supply DL 0-10V Dimming 220V AC Power Supply | U Washer (1:3) W Washer (1:4.5) | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | WT White BK Black |
Example: EW3C-40EL-U27BK
Note: Wall wash ratio refers to the ratio of the distance of the luminary from the ceiling to the distance between the two lamps, see the installation diagram for details.
