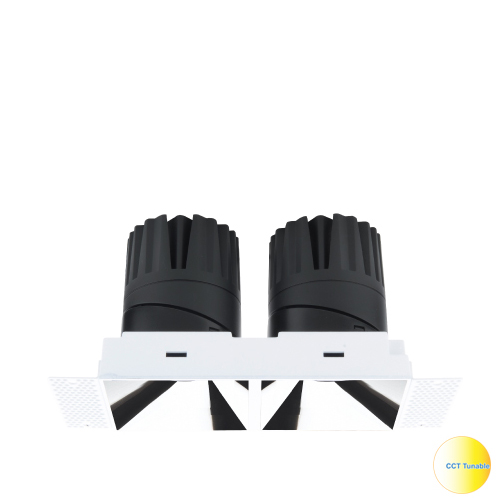

MTN26/MTN36/MTN46 2/3/4" Tunable
The unique angle adjustment method realizes the multi-purpose of one lamp. The whole lamp is sealed design, no light leakage in the process of adjusting the angle, modular design, the reflector and lamp body can be disassembled and replaced freely on site. New hidden light technology and color temperature adjustable function, mainly used in hotels, villas and commercial spaces and other indoor places.
2/3/4 Line Drawing Preview
ULTRA TUNABLE
ULTRA TUNABLE
ULTRA TUNABLE
SieMatic Shanghai Flagship Store
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
MTN Multiple Downlight N series | 2 2” | 6 Rectangular Trimless | 207 COB 2*07W | A DALI N No Driver | 2 24° 3 36° 5 50° | CC 2700K-6000K (Tunable) | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
MTN Multiple Downlight N series | 3 3” | 6 Rectangular Trimless | 213 COB 2*13W | A DALI N No Driver | 1 18° 2 28° 3 36° 5 50° | CC 2700K-6000K (Tunable) | B Black S Specular | WT White BK Black |
Note: factory standard for 18° is with honeycomb, not for other beam angles.
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
MTN Multiple Downlight N series | 4 4” | 6 Rectangular Trimless | 225 COB 2*25W | A DALI N No Driver | 1 18° 2 28° 3 36° 5 50° | CC 2700K-6000K (Tunable) | B Black S Specular | WT White BK Black |
Example: MTN36-213A-2CCSWT
