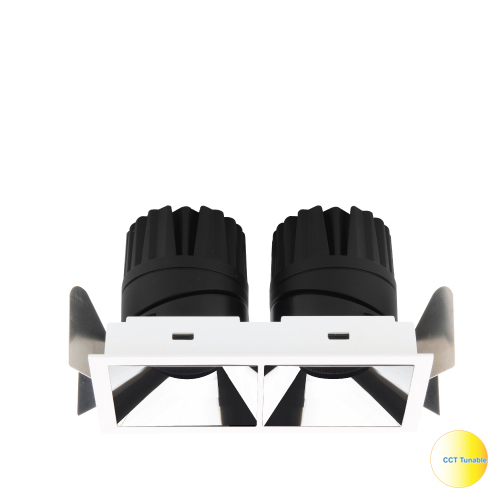

MTN25/MTN35/MTN45 2/3/4" Tunable
The unique angle adjustment method realizes the multi-purpose of one lamp. The whole lamp is sealed design, no light leakage in the process of adjusting the angle, modular design, the reflector and lamp body can be disassembled and replaced freely on site. New hidden light technology and color temperature adjustable function, mainly used in hotels, villas and commercial spaces and other indoor places.
2/3/4 Line Drawing Preview
Through the patented tilt angle adjustment design, it makes to realize both fixed and adjustable downlight. Sealed design of the whole fixture ensures no light leakage in the process of tilt the angle.
The spot remains clean and intact complete status throughout the ULTRA adjustment process
Do not use any external force, add three times optical accessories to get rich light effect. Even the lens module can be disassembled and replaced with bare hands on site, one light can be used for multiple purposes.
SieMatic Shanghai Flagship Store
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
MTN Multiple Downlight N series | 2 2” | 5 Rectangular Trim | 207 COB 2*07W | A DALI N No Driver | 2 24° 3 36° 5 50° | CC 2700K-6000K (Tunable) | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
MTN Multiple Downlight N series | 3 3” | 5 Rectangular Trim | 213 COB 2*13W | A DALI N No Driver | 1 18° 2 28° 3 36° 5 50° | CC 2700K-6000K (Tunable) | B Black S Specular | WT White BK Black |
Note: factory standard for 18° is with honeycomb, not for other beam angles.
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
MTN Multiple Downlight N series | 4 4” | 5 Rectangular Trim | 225 COB 2*25W | A DALI N No Driver | 1 18° 2 28° 3 36° 5 50° | CC 2700K-6000K (Tunable) | B Black S Specular | WT White BK Black |
Example: MTN35-213A-2CCSWT
