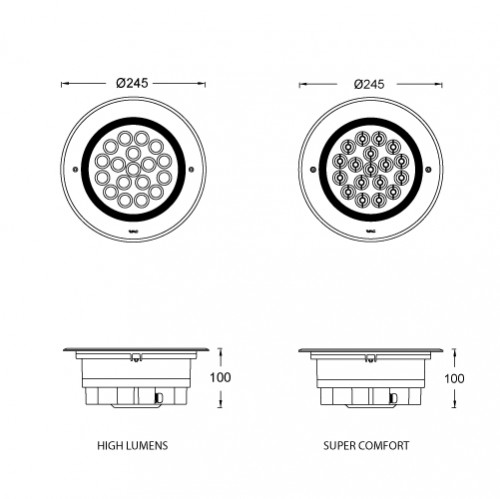

EIR5M/EIR6M/Up Light/High Power LED/Φ245
The surface frame of FUEGO Compact is made of high-quality 316 stainless steel, the light body is aluminum die-casting, and is spray-coated powder in high-temperature. Suitable for outdoor environment, IP67, IK08, can withstand pressure of 2000kg. High transmittance lens + patented darklight system. With the design of embedded tube, it is convenient for customers to install and maintain.
| Model | Comment | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EIR5M High Lumens | F Frame | 33 33(Max) | 18 | 2500 | EL ON-OFF | S 7° 1 14° 2 20° 3 30° | 27 2700K 30 3000K 40 4000K | SS Stainless Steel |
| Model | Comment | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EIR5M High Lumens | F Frame | 27 27(Max) | 18 | 2045 | ML DMX512 Dimming | S 7° 1 14° 2 20° 3 30° | 27 2700K 30 3000K 40 4000K | SS Stainless Steel |
| Model | Comment | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EIR6M Super Comfort | F Frame | 33 33(Max) | 18 | 1607 | EL ON-OFF | S 7° 1 13° 2 20° 3 30° | 27 2700K 30 3000K 40 4000K | SS Stainless Steel |
| Model | Comment | Power (W) | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EIR6M Super Comfort | F Frame | 27 27(Max) | 18 | 1315 | ML DMX512 Dimming | S 7° 1 13° 2 20° 3 30° | 27 2700K 30 3000K 40 4000K | SS Stainless Steel |
Example: EIR6MF-33EL-S27SS
