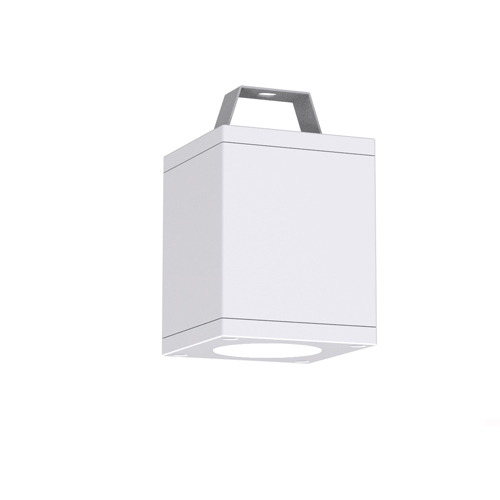

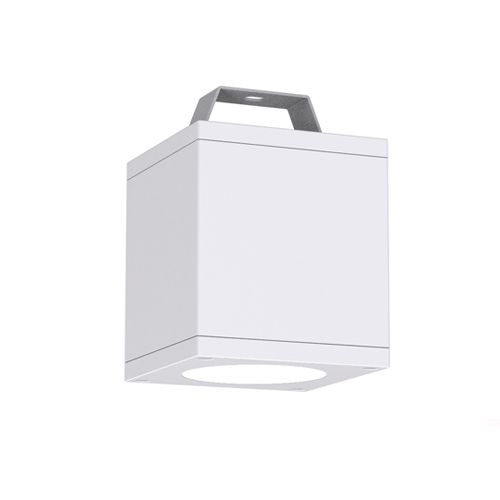

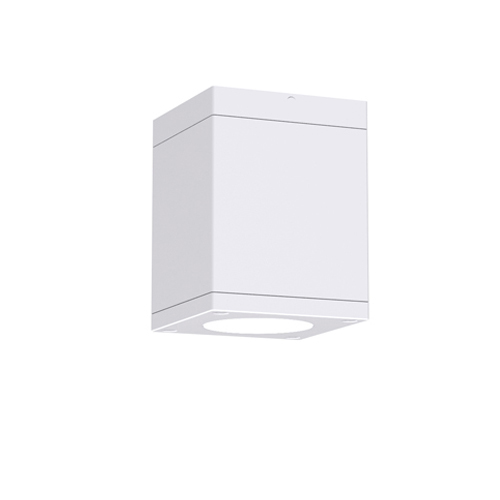

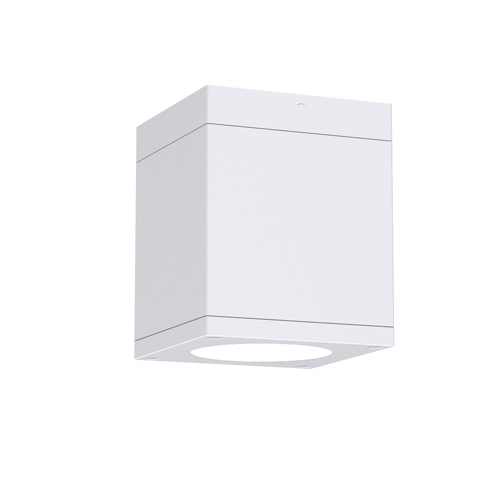

ES2S/ES2M IP65 Square Surface-mounted Downlight
SLANA square surface-mounted downlight are more decorative in architectural lighting. They are installed on ceilings and U-shaped brackets. Their exquisite appearance and structural design, excellent optical performance and flexible humanized accessories can bring perfection to users. Excellent light environment experience, suitable for functional lighting in public high spaces.
| Model | Comment | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
ES2S | U U-Shape Bracket C Ceiling Mounted | 27 25(Max) | COB | 2251 | EL ON-OFF 220V AC Power Supply DL 0-10V Dimming 220V AC Power Supply | 1 16° 2 21° 3 33° | 30 3000K 40 4000K | WT White BK Black |
| Model | Comment | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
ES2M | U U-Shape Bracket C Ceiling Mounted | 36 36(Max) | COB | 2783 | EL ON-OFF 220V AC Power Supply DL 0-10V Dimming 220V AC Power Supply | 1 16° 2 30° 4 40° | 30 3000K 40 4000K | WT White BK Black |
Example: ES2MU-36EL-130WT
