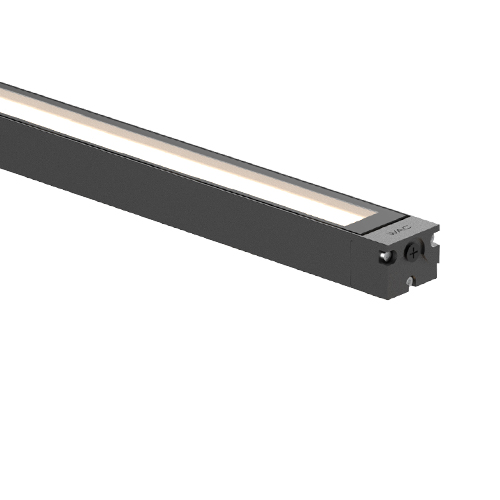

ELV103/ELV106/ELV109/ELV112 High Power Linear Light
The light is equipped with high-quality LED with strong luminous efficiency and long lifespan and lens with unique optical properties, combined with an equal-spaced arrangement design to ensure uniform light emission. The light cable comes out from the side or bottom, and the specially configured Gore breathing valve can effectively balance the internal and external air pressure to prevent condensation, and meets the requirements of LED outdoor lighting power consumption design.
| Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Power Feed Type | CCT | Finish |
ELV103-07 | 300 | 07(Max) | 3 | 368 | ET ON-OFF 24V DC Power Supply EC Max 700mA Drive MT DMX512 Dimming 24V DC Power Supply | C 60°*100° | S Side B Bottom | 30 3000K 40 4000K | B Black |
| Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Power Feed Type | CCT | Finish |
ELV106-14 | 600 | 14(Max) | 6 | 748 | ET ON-OFF 24V DC Power Supply EC Max 700mA Drive MT DMX512 Dimming 24V DC Power Supply | C 60°*100° | S Side B Bottom | 30 3000K 40 4000K | B Black |
| Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Power Feed Type | CCT | Finish |
ELV109-21 | 900 | 21(Max) | 9 | 1088 | ET ON-OFF 24V DC Power Supply EC Max 700mA Drive MT DMX512 Dimming 24V DC Power Supply | C 60°*100° | S Side B Bottom | 30 3000K 40 4000K | B Black |
| Model | Length (mm) | Power (W) | LEDs (quantity) | Max Lumens (lm) | Control Systems | Beam | Power Feed Type | CCT | Finish |
ELV112-28 | 1200 | 28(Max) | 12 | 1399 | ET ON-OFF 24V DC Power Supply EC Max 700mA Drive MT DMX512 Dimming 24V DC Power Supply | C 60°*100° | S Side B Bottom | 30 3000K 40 4000K | B Black |
Example: ELV103-07MT-CS30-B
