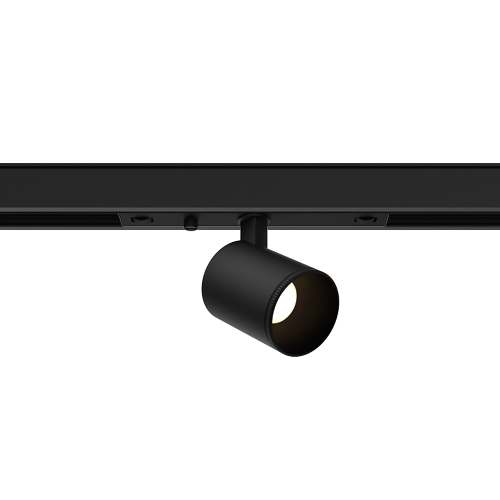

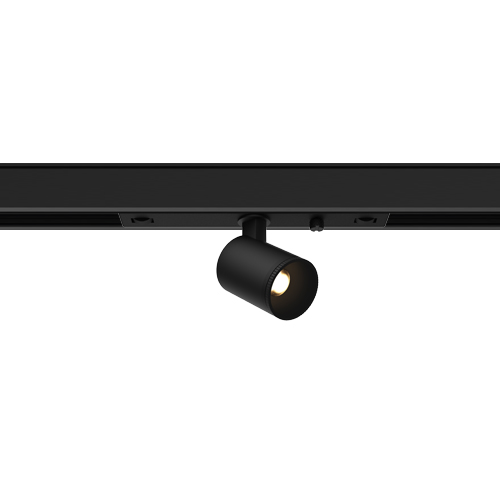

SL45F/SL46F/SL47F/SL48F Mini Zoomable Spotlight
The series is a compact and flexible solution for the WAC mini track system. It utilizes WAC's leading SUBROSA concealed lighting technology with a 30° anti-glare angle for the ultimate in anti-glare. Plus, it offers 4 fixed angle options for a wide range of applications in museum and art gallery display case spaces.

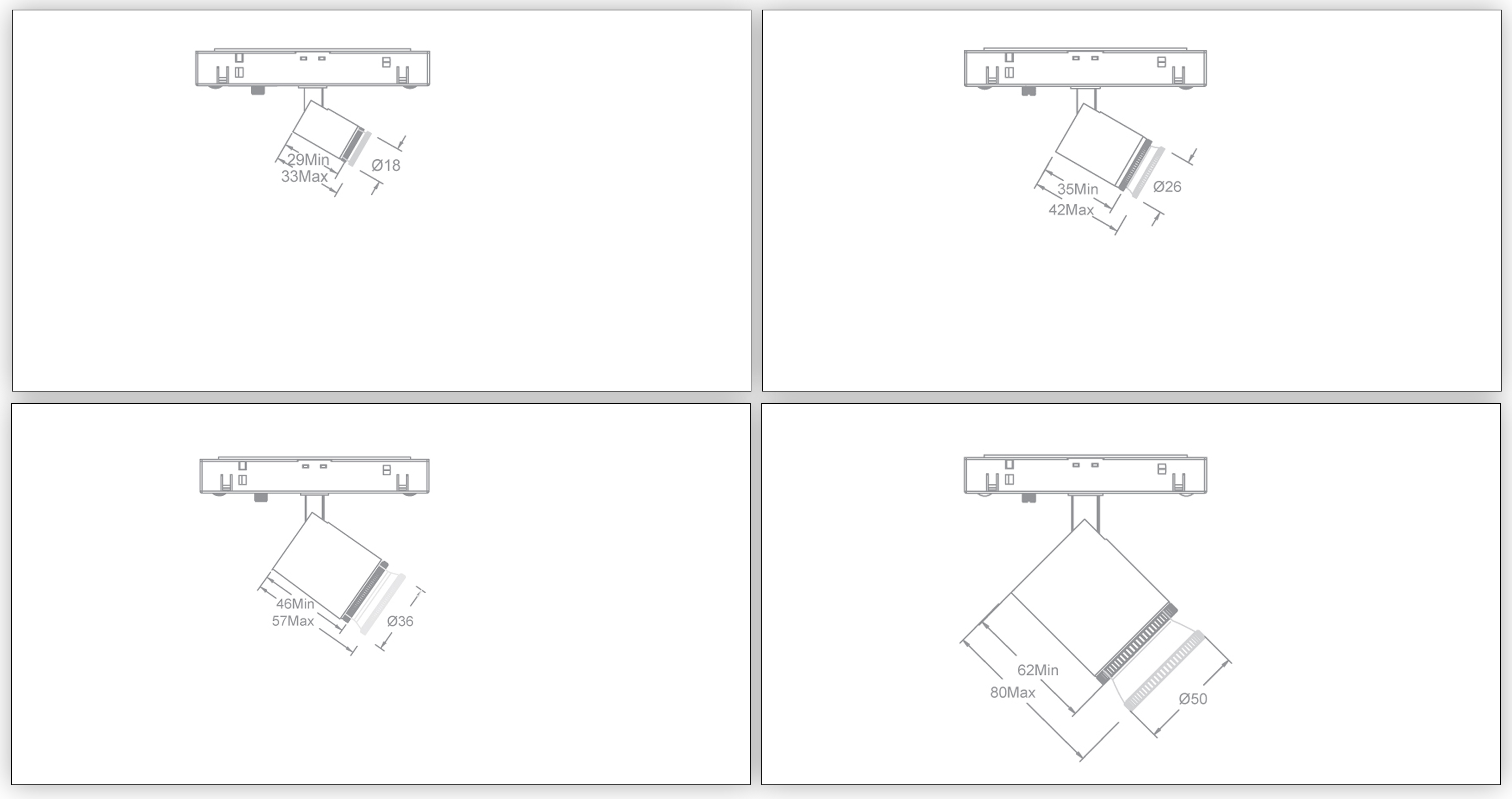

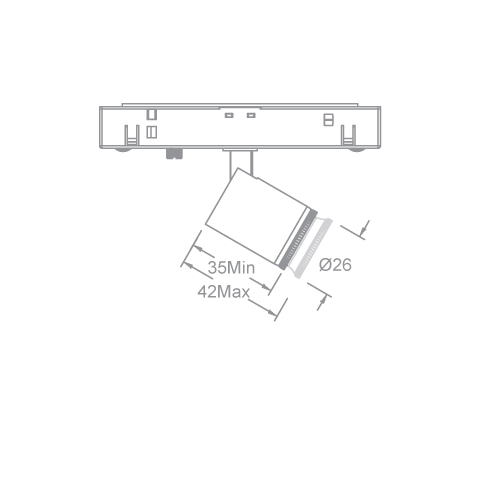

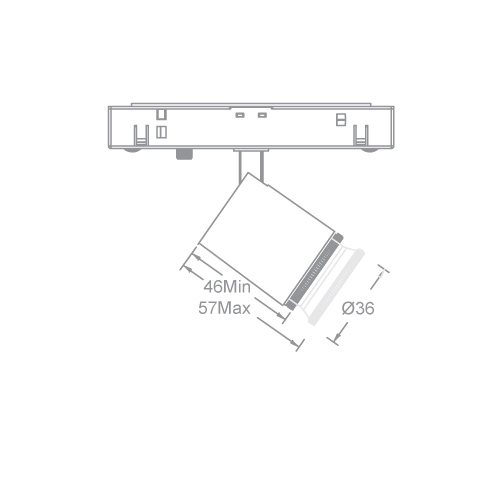

SL45F/SL46F/SL47F/SL48F Size Details, the series offers 18mm, 26mm, 36mm, and 50mm diameter options, while beam angle adjustment can be achieved by rotating the face frame.
In addition to the loading of WAC's patented optical technology SUBROSA® Hidden Light System, which comes with a 30°anti-glare angle in the Extreme Space, the beam angle is adjustable from 6°-60° at the same time.
The Ocularc series offers three mounting options, track mount, surface mount (ceiling & recessed), and pole mount, to meet the needs of a wide variety of installations.
Nanjing City Wall Museum
| Model | LED | Dimming | Beam | CRI | CCT | Finish |
SL45F Ocularc Focus | LD01 LED 1W | O On-boarding E ON-OFF | F 10°-40° | 9 90 A 97 | 30 3000K 40 4000K | BK Black |
| Model | LED | Dimming | Beam | CRI | CCT | Finish |
SL46F Ocularc Focus | LD03 LED 3W | O On-boarding E ON-OFF | F 6°-40° | 9 90 A 97 | 30 3000K 40 4000K | BK Black |
| Model | LED | Dimming | Beam | CRI | CCT | Finish |
SL46F Ocularc Focus | LD03 LED 3W | O On-boarding E ON-OFF | F 8°-40° | A 97 | 30 3000K 40 4000K | BK Black |
| Model | LED | Dimming | Beam | CRI | CCT | Finish |
SL47F Ocularc Focus | LD05 LED 5W | O On-boarding E ON-OFF | F 8°-40° | 9 90 A 97 | 30 3000K 40 4000K | BK Black |
| Model | LED | Dimming | Beam | CRI | CCT | Finish |
SL48F Ocularc Focus | LD10 LED 10W | O On-boarding E ON-OFF | F 7°-60° | 9 90 A 97 | 30 3000K 40 4000K | BK Black |
Example: SL47FLD05-O-F930BK; Remarks: Support the system dimming, you need to match the remote driver of constant voltage (the dimming method is determined by the constant voltage driver.)
