SLN36 3" Surface-Mounted Square Downlight

Square

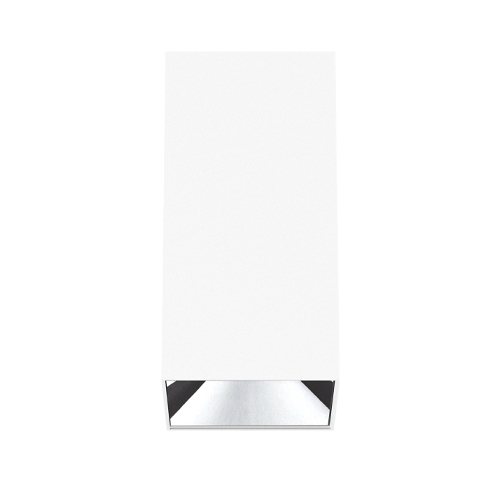

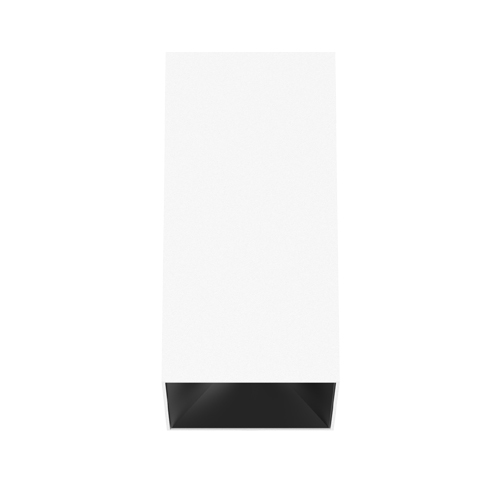

SLN36 3" Surface-Mounted Square Downlight

The light adopts a modular design, and the reflector and light body can be freely disassembled and replaced on site, thereby enabling free switch between various specifications and light distributions. The new invisible light technology gives good anti-glare performance and color consistency control, and has a comfortable light effect. It is mainly suitable for indoor places such as hotels, villas and commercial spaces.

Features
Specifications

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

SLN

Surface Mounted

N series

3 3”

6 Rectangular Trimless

LM08  COB 8W

E  On-Off

D    0-10V Dimming

S      8°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

SLN

Surface Mounted

N series

3 3”

6 Rectangular Trimless

LM07  COB 7W

LM10  COB 10W

LM13  COB 13W

E  On-Off

D   0-10V Dimming

N     13°

1     18°

2     28°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT White

BK Black

Example: SLN36-LM07E-N30SWT

Note: Factory standard for 8/13/18° is with honeycomb.
