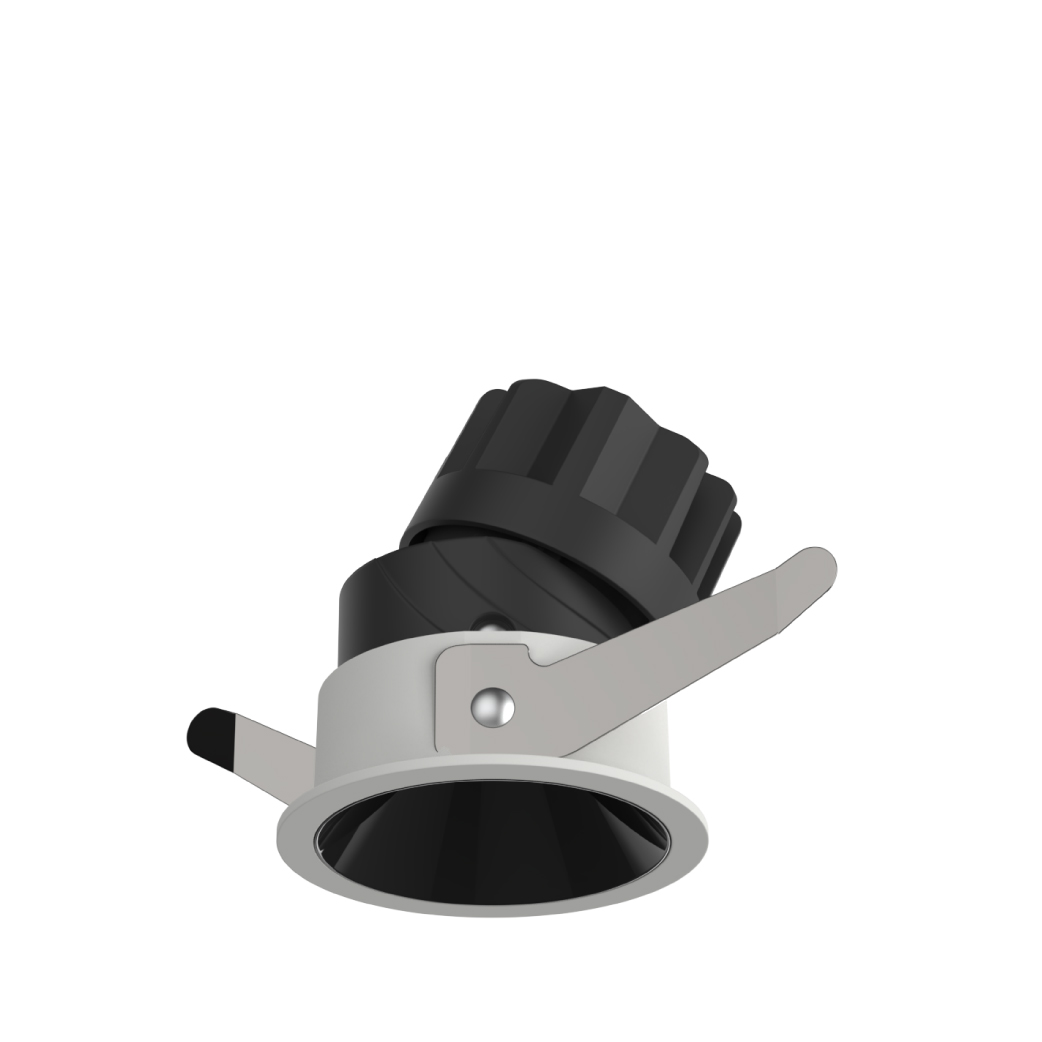

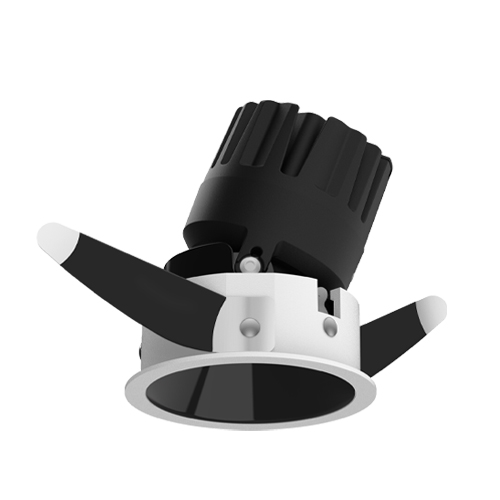

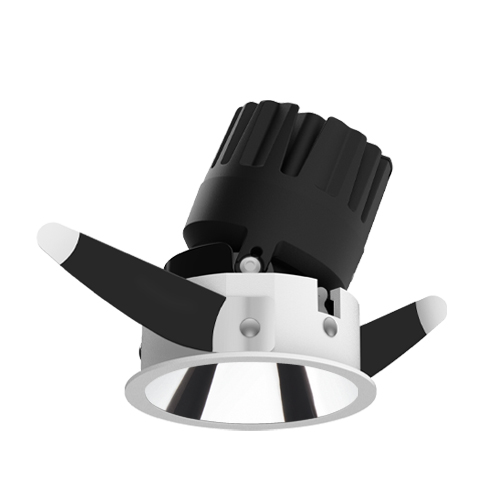

DLH31/DLH32 3" Round Fixed and Adjustable 2in1
The ELANA Pro round downlight is a perfect blend of downlighting and dimming functionality. With precise light distribution through high-quality reflectors and lenses, ELANA Pro is designed to provide a comfortable visual experience while ensuring the integrity of the light spot. The ELANA Pro is therefore highly applicable to public spaces such as high-end hotels, commercial and office spaces.
The stability of fixed downlight and the flexibility of adjustable downlight, 2in1 fixture
Honeycomb + 40° anti-glare angle reflector, double guarantee, provide the ultimate comfortable visual experience
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLH Downlight H series | 3 3” | 1 Round Trim | LM07 COB 7W LM10 COB 10W LM13 COB 13W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° 4 45° | 27 2700K 30 3000K 40 4000K | B Black S Specular | WT White |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLH Downlight H series | 3 3” | 1 Round Trim | LM13 COB 13W | A DALI N Driver | 1 15° 2 24° 3 36° 4 45° | 27 2700K 30 3000K 40 4000K | B Black S Specular | WT White |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLH Downlight H series | 3 3” | 2 Round Trimless | LM07 COB 7W LM10 COB 10W LM13 COB 13W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° 4 45° | 27 2700K 30 3000K 40 4000K | B Black S Specular | WT White |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLH Downlight H series | 3 3” | 2 Round Trimless | LM13 COB 13W | A DALI N Driver | 1 15° 2 24° 3 36° 4 45° | 27 2700K 30 3000K 40 4000K | B Black S Specular | WT White |
Example: DLH31-LM10-E230SWT, factory standard for 15 ° is with honeycomb, not for other beam angles.
