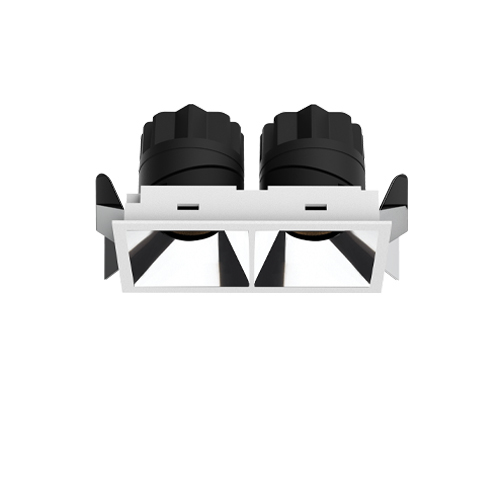

MTN25/MTN35/MTN45 2/3/4"
The Fixed & Adjustable 2 in 1 downlight adopts the entire light sealing design, which ensures no light leakage during the cornering process. New hidden light technology delivers excellent anti-glare performance and color consistency control, featuring a comfortable light output effect. The modular design allows for free removal and replacement of the reflector and lamp body on site.
2/3/4 Line Drawing Preview
ULTRA
ULTRA
ULTRA
SieMatic Shanghai Flagship Store
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
MTN Multiple Downlight N series | 2 2” | 5 Rectangular Trim | 205 COB 2*5W 207 COB 2*7W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
MTN Multiple Downlight N series | 2 2” | 5 Rectangular Trim | 207 COB 2*7W | N No Driver A DALI | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
MTN Multiple Downlight N series | 3 3” | 5 Rectangular Trim | 208 COB 2*8W | E On-Off D 0-10V Dimming | S 8° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
MTN Multiple Downlight N series | 3 3” | 5 Rectangular Trim | 207 COB 2*7W 210 COB 2*10W 213 COB 2*13W | E On-Off D 0-10V Dimming | N 13° 1 18° 2 28° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
MTN Multiple Downlight N series | 3 3” | 5 Rectangular Trim | 213 COB 2*13W | N No Driver A DALI | N 13° 1 18° 2 28° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
MTN Multiple Downlight N series | 4 4” | 5 Rectangular Trim | 208 COB 2*8W | E On-Off D 0-10V Dimming | S 8° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
MTN Multiple Downlight N series | 4 4” | 5 Rectangular Trim | 213 COB 2*13W 218 COB 2*18W 225 COB 2*25W | E On-Off D 0-10V Dimming | N 13° 1 19° 2 28° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
MTN Multiple Downlight N series | 4 4” | 5 Rectangular Trim | 225 COB 2*25W | N No Driver A DALI | N 13° 1 19° 2 28° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Example: MTN25-205E-230SWT
