EF4TI/EF4NI/EF4SI/EF4MI/EF4LI

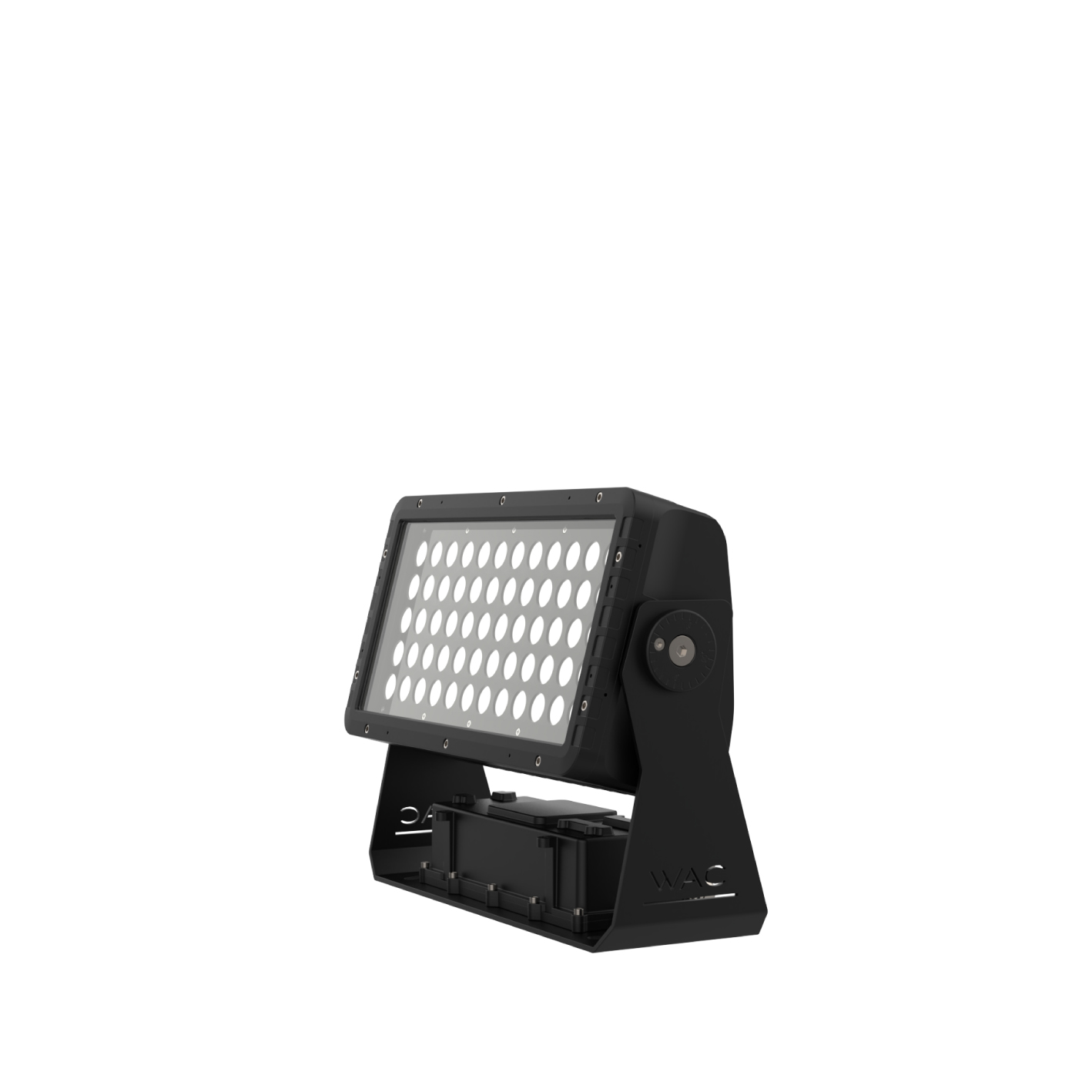

SHINE PRO Series are professional LED floodlights designed by WAC for high-end outdoor applications. The unique shape and all-glass surface design is simple, generous, modern and aesthetic, which is more suitable for the current and future architectural trends. Equipped with breathing valve, which effectively balances the internal and external air pressure to prevent condensation. Fully integrated aerodynamic principle with unique optimal heat dissipation structure to enhance the heat dissipation performance of the luminaires and extend the service life of the LED luminaires. SHINE PRO series luminaire is available in various sizes, angles and wattages to meet different lighting applications.

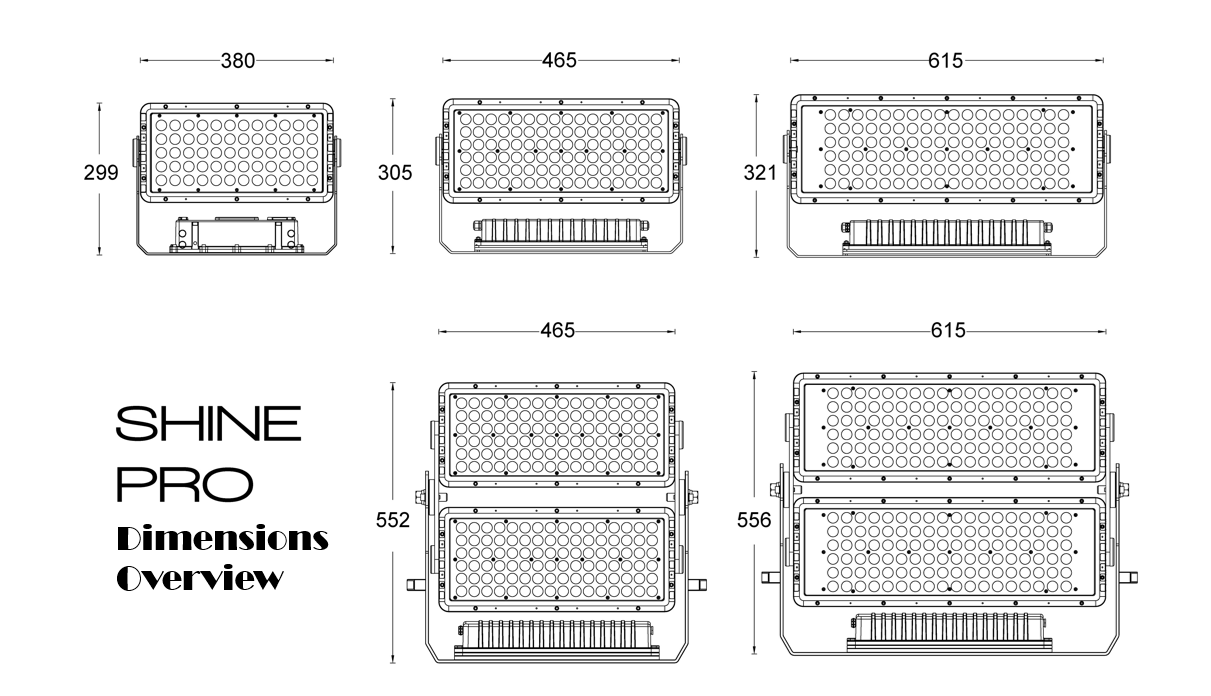

A wide range of size options and power coverage to meet the diverse lighting needs of major bridges and building facades.
WAC full-color RGBW whole light provides higher utilization efficiency and maximizes lumen output, whether it is single-color, dual-color or tri-color mixing. Color output brightness is precisely controlled to maintain an excellent balance. In addition to providing unlimited possibilities for color variation, it also eliminates visual disparity and brings a more comfortable visual experience.
Brilliant color is added to accent lighting while maintaining a soft receding halo characteristic that allows for a natural transition of light and provides greater visual comfort.

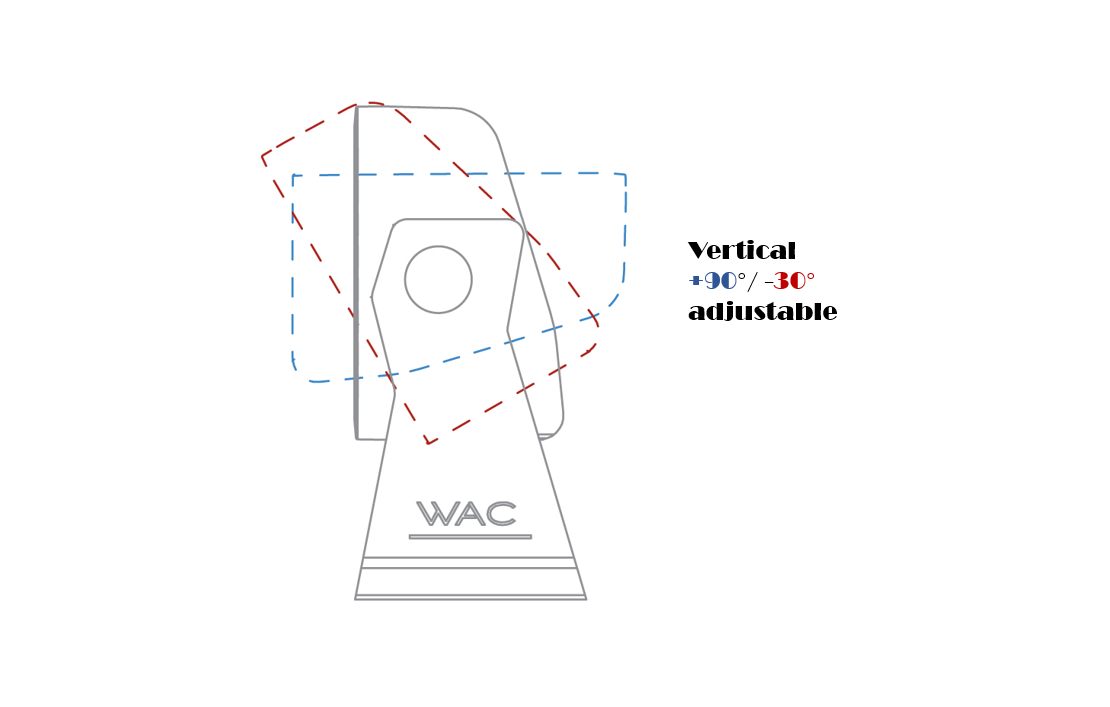

Vertical +90°/-30° adjustable. Available with ultra-narrow angle accessory. It ensures high power and precise illumination of the illuminated surface at a small angle and reduces the need to adjust the fixture's position repeatedly.
Model | Power | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EF4TI | 118 118W(Max) | 60 | 3879 | ML DMX512 220V AC Power Supply | 1 12° 2 28° 5 50° J 14°x27° | F30 RGBW(3000K) F40 RGBW(4000K) F60 RGBW(6000K) | BK Black |
Model | Power | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EF4NI | 161 161W(Max) | 96 | 7334 | ML DMX512 220V AC Power Supply | 1 14° 2 29° 5 50° J 17°x29° | F30 RGBW(3000K) F40 RGBW(4000K) F60 RGBW(6000K) | BK Black |
Model | Power | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EF4SI | 227 227W(Max) | 108 | 10031 | ML DMX512 220V AC Power Supply | 1 13° 2 29° 5 50° J 22°x29° | F30 RGBW(3000K) F40 RGBW(4000K) F60 RGBW(6000K) | BK Black |
Model | Power | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EF4MI | 322 322W(Max) | 192 | 14668 | ML DMX512 | 1 14° 2 29° 5 50° J 17°x29° | F30 RGBW(3000K) F40 RGBW(4000K) F60 RGBW(6000K) | BK Black |
Model | Power | LEDs (Quantity) | Max Lumens (lm) | Control Systems | Beam | CCT | Finish |
EF4LI | 454 454W(Max) | 216 | 20063 | ML DMX512 220V AC Power Supply | 1 13° 2 29° 5 50° J 22°x29° | F30 RGBW(3000K) F40 RGBW(4000K) F60 RGBW(6000K) | BK Black |
Example: EF4TI-118ML-1F30BK
