ELANA PRO

DLH26/DLH36

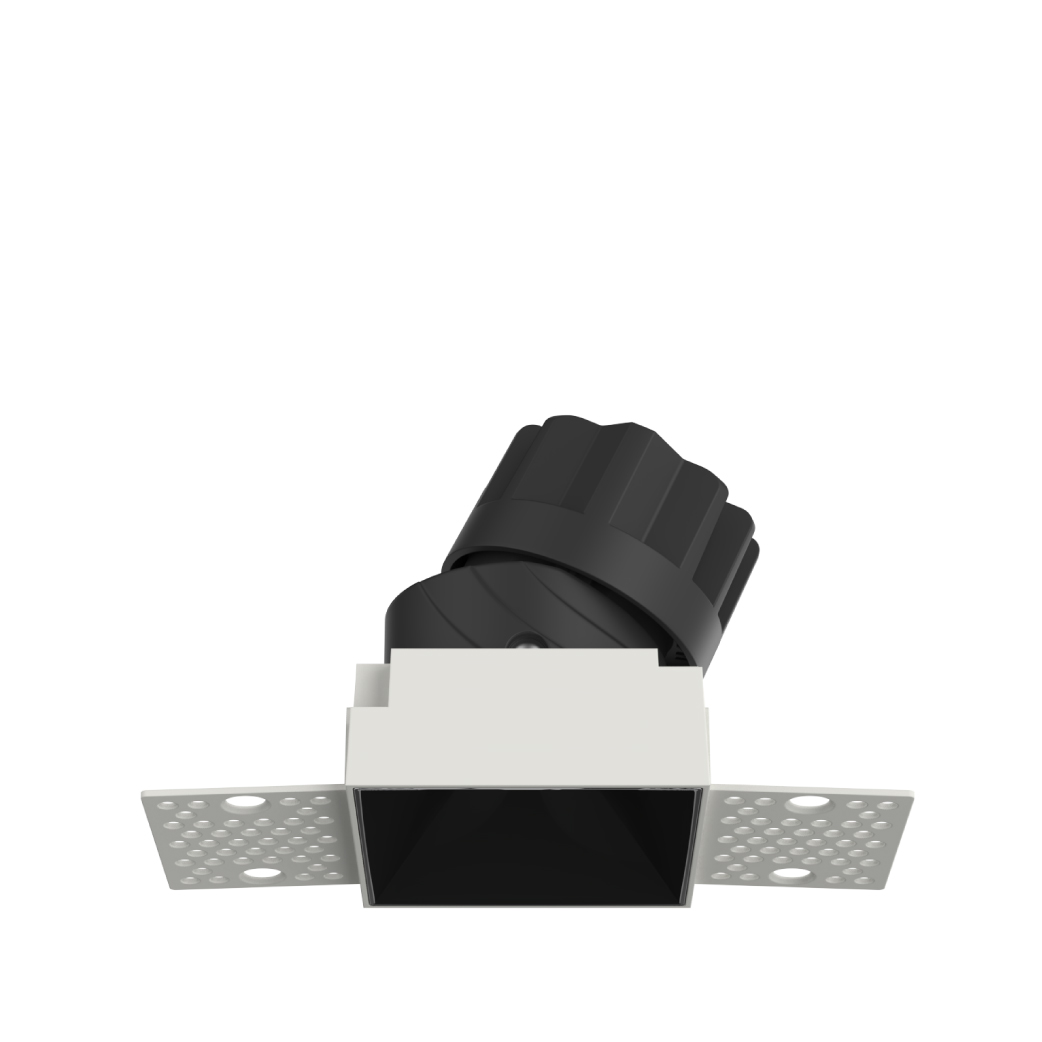

Square Rimless Recessed Downlight

Square Rimless Recessed Downlight

DLH26/DLH36

ELANA Pro Square Recessed Downlight is the perfect integration of downlighting and angle adjustment. The precise light distribution through the lens and the high quality reflector provide a comfortable visual experience and ensure the integrity of the light spot. Particularly suitable for high-end hotels, commercial and office public space.

Features

Integrated Downlight Angle Adjustment

Combines stable downlighting with flexible angular performance.

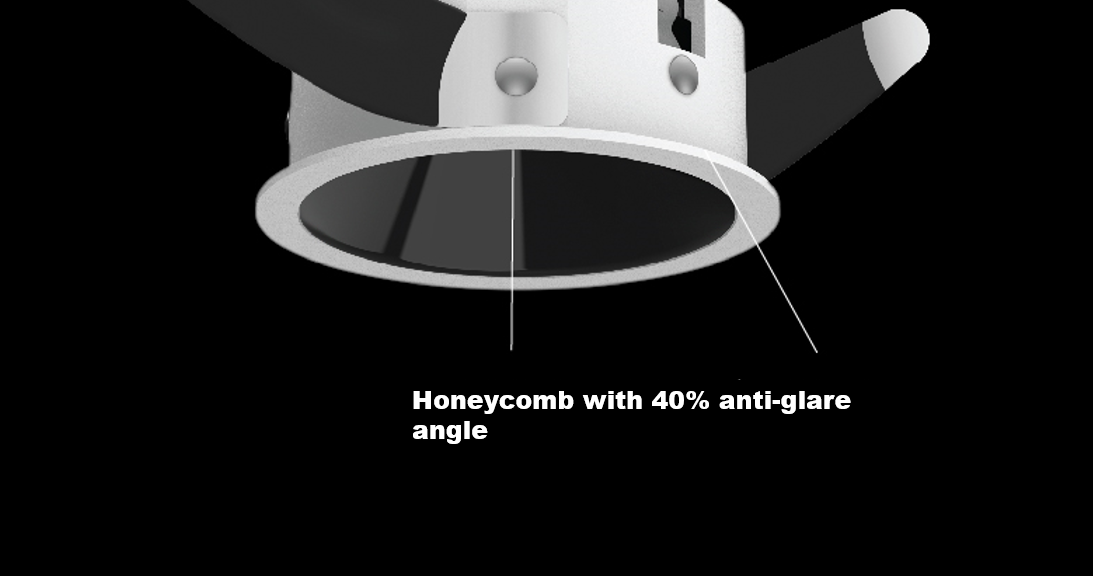

Extra-large Anti-glare Angle

Honeycomb + 40° anti-glare angle reflector. Double guarantee for ultimate visual comfort.

Specifications

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

DLH

Downlight

H series

2  2”

6

Rectangular Trimless

LM05 COB 5W

LM07 COB 7W

E  On-Off

D  0-10V Dimming

1   15°

2   24°

3   36°

5   50°

27  2700K

30  3000K

40  4000K

B  Black

S  Specular

W White

WT  White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

DLH

Downlight

H series

2  2”

6

Rectangular Trimless

LM07 COB 7W

A  DALI

N  No Driver

1   15°

2   24°

3   36°

5   50°

27  2700K

30  3000K

40  4000K

B  Black

S  Specular

W White

WT  White

BK Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

DLH

Downlight

H series

3  3”

6

Rectangular Trimless

LM07 COB 7W

LM10 COB 10W

E  On-Off

D  0-10V Dimming

1   15°

2   24°

3   36°

4   45°

27  2700K

30  3000K

40  4000K

B  Black

S  Specular

WT  White

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

DLH

Downlight

H series

3  3”

6

Rectangular Trimless

LM13 COB 13W

A  DALI

N  No Driver

1   15°

2   24°

3   36°

4   45°

27  2700K

30  3000K

40  4000K

B  Black

S  Specular

WT  White

Example: DLH35-LM10-E230SWT.

15° factory delivered with honeycomb, other angles without.
