OR140DL
LIGNE PRO recessed linear downlighting luminaire, using aluminum profile lamp body, the appearance of simple atmosphere and beautiful. LED light source, high luminous efficacy, high index. Using the original SUBROSA anti-glare design, deep anti-glare, with a variety of light distribution. Mainly used in public space, commercial, office, display lighting and other places of lighting applications.

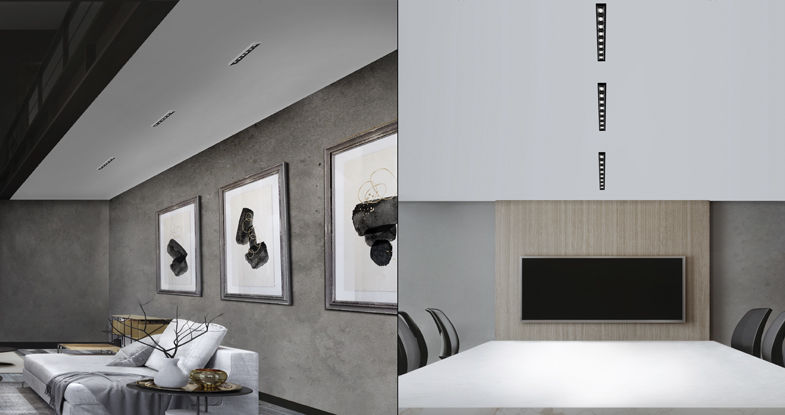

Neat, attractive installation possible with trimless part
Application
Model | Comment | Power (W) | Driver | Beam | CCT | Reflector | Finish |
OR140 40 Width | DL Downlight Trimless | 06 6W | E ON-OFF | 1 16° 3 36° 4 46° | 27 2700K 30 3000K 35 3500K 40 4000K | B Black G Gold H Haze | WT White |
Model | Comment | Power (W) | Driver | Beam | CCT | Reflector | Finish |
OR140 40 Width | DL Downlight Trimless | 11 11W | E ON-OFF | 1 16° 3 36° 4 46° | 27 2700K 30 3000K 35 3500K 40 4000K | B Black G Gold | WT White |
Model | Comment | Power (W) | Driver | Beam | CCT | Reflector | Finish |
OR140 40 Width | DL Downlight Trimless | 22 22W | E ON-OFF | 1 16° 3 36° 4 46° | 27 2700K 30 3000K 35 3500K 40 4000K | B Black G Gold | WT White |
Model | Comment | Power (W) | Driver | Beam | CCT | Reflector | Finish |
OR140 40 Width | DL Downlight Trimless | 32 32W | E ON-OFF | 1 16° 3 36° 4 46° | 27 2700K 30 3000K 35 3500K 40 4000K | B Black G Gold | WT White |
Example:OR140DL-06E-140BWT
