DDT25/DDT35 2/3" Adjustable Downlight

Adjustable Square 2/3"

DDT25/DDT35 2/3" Adjustable Downlight

The Adjustable Square Recessed Downlight features a streamlined appearance with a precise lens and black mirror reflector design to ensure the illumination output while still achieving the ultimate anti-glare effect. The sealed light source cavity is designed to minimize the effect of humid environment on its performance. Available with freely removable and replaceable reflectors or optical accessories, which greatly improves the accessibility in the field.

Features

High thermal performance

Convection cooling + Enclosed chimney cooling to enhance thermal performance

IP44 sealed light source chamber design

Ensures stable performance in humid environment

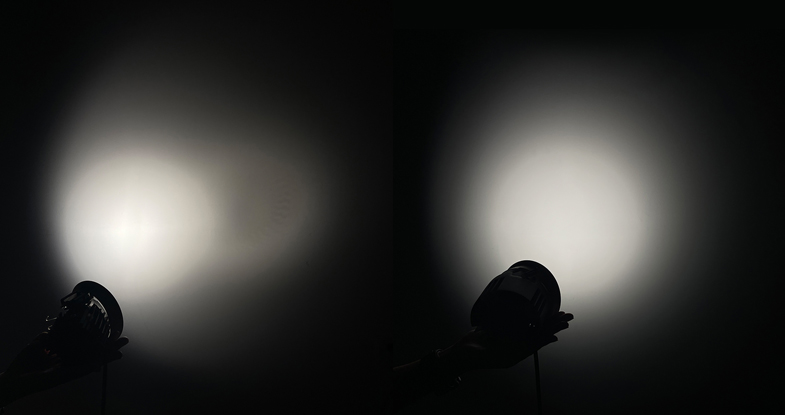

No light spot spill out (right VOLTA)

Actual light effect with clean, soft spot and no stray light

Adjustment without light leakage (right VOLTA)

Combination of light perfromance and anti-glare design, no stray light throughout the process of tilting angle

Specifications

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

DDT

2 2”

5 Square Trim

LD08  LED 8W

E  On-Off

D  0-10V Dimming

A  DALI

N  No Driver

1     15°

2     24°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT White

BK  Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

DDT

3 3”

5 Square Trim

LD08  LED 8W

E  On-Off

D  0-10V Dimming

S     8°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT White

BK  Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

DDT

3 3”

5 Square Trim

LM07  COB 7W

LM10  COB 10W

LM13  COB 13W


E  On-Off

D  0-10V Dimming

1     15°

2     24°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT White

BK  Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

DDT

3 3”

5 Square Trim

LM13  COB 13W


A  DALI

N  No Driver

1     15°

2     24°

3     36°

5     50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

S  Specular

WT White

BK  Black

Example: DDT35-LM13E-230SWT
