SILO PRO Singe Circuit

JL15W/JL16W/JL17W Single Circuit Wall Washer Tracklight

WALL WASHER

JL15W/JL16W/JL17W Single Circuit Wall Washer Tracklight

Suitable for J single circuit rail system, exquisite shape design, no visible radiator, built-in non-strobe driver, using COB light-emitting modules, providing a variety of standard color temperature options, with excellent wall washer light distribution and excellent color rendering, widely used in museums, art galleries, commercial high space, hotels, retail and other places.

Features

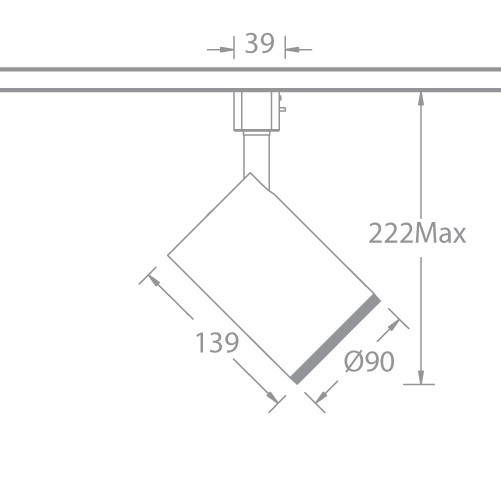

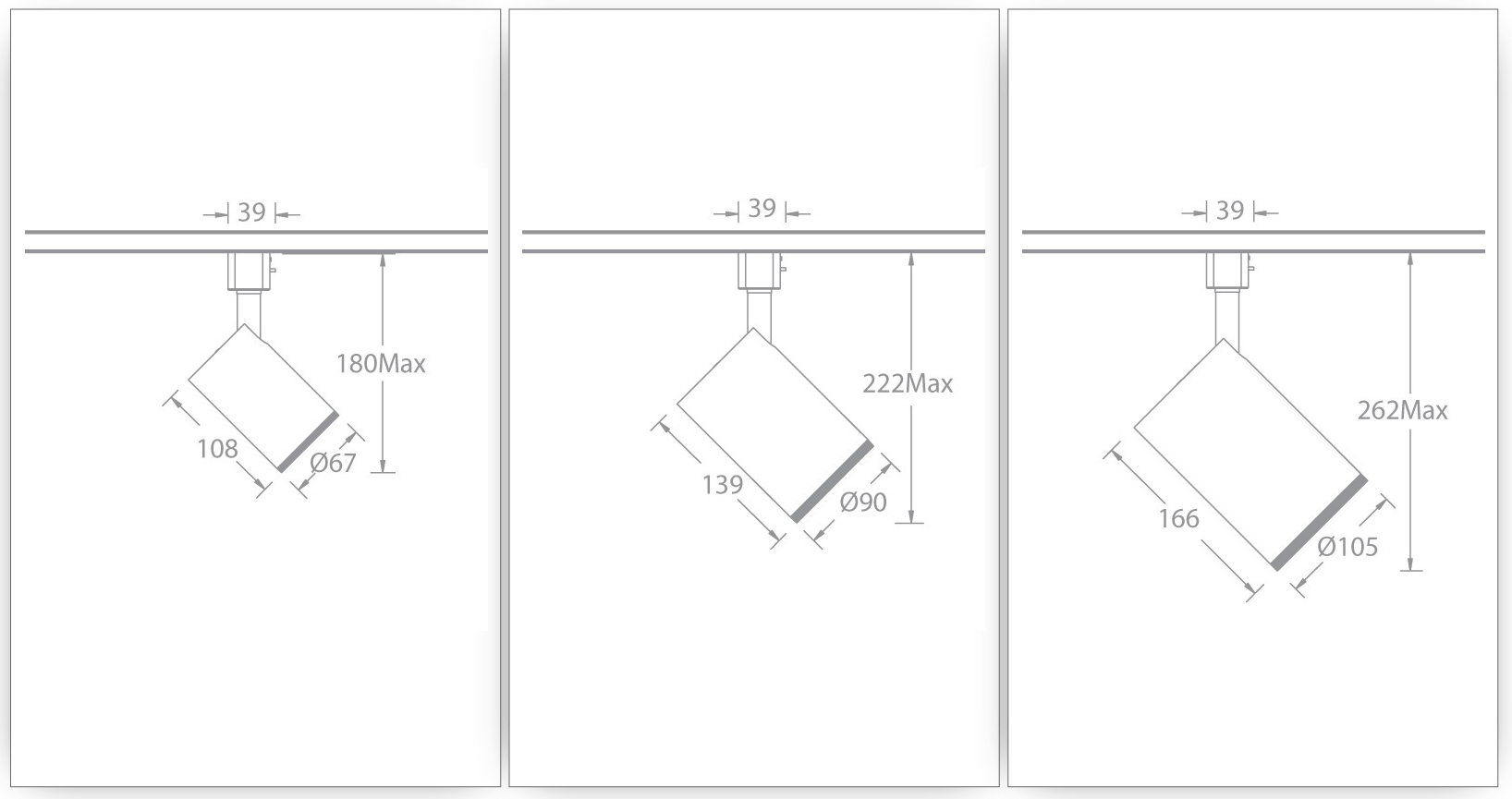

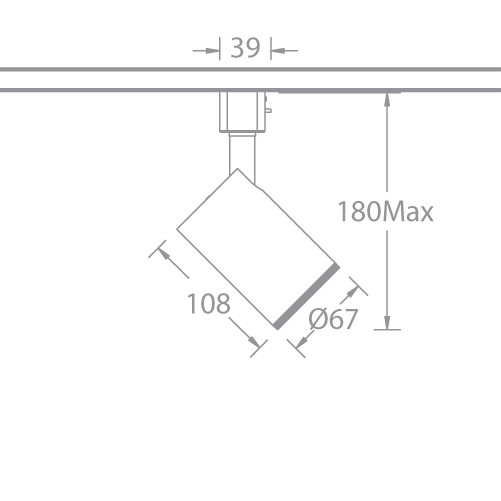

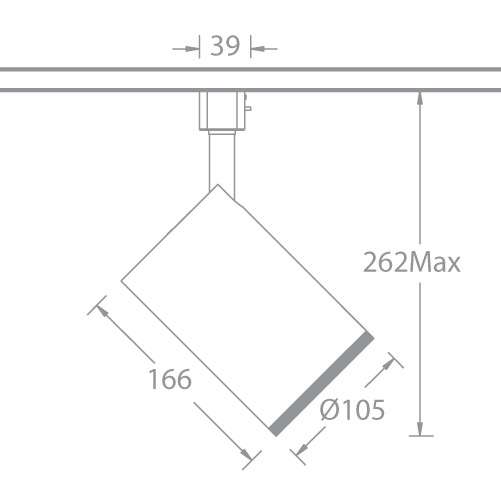

Product Line Drawing

JL15W/JL16W/JL17W Line Drawing Preview

Specifications

Model

LED

Dimming

Beam

CRI

CCT

Finish

JL15W

LM06  COB 6W

LM12  COB 12W

O  On-board

W  Wall washer

9  90

27  2700K

30  3000K

40  4000K

50  5000K

WT  White

BK  Black

Model

LED

Dimming

Beam

CRI

CCT

Finish

JL16W

LM18  COB 18W

LM26  COB 26W

O  On-board

W  Wall washer

9  90

27  2700K

30  3000K

40  4000K

50  5000K

WT  White

BK  Black

Model

LED

Dimming

Beam

CRI

CCT

Finish

JL17W

LM34  COB 34W

O  On-board

W  Wall washer

9  90

27  2700K

30  3000K

40  4000K

50  5000K

WT  White

BK  Black

Example: JL17WLM34-O-W930WT

Documents
