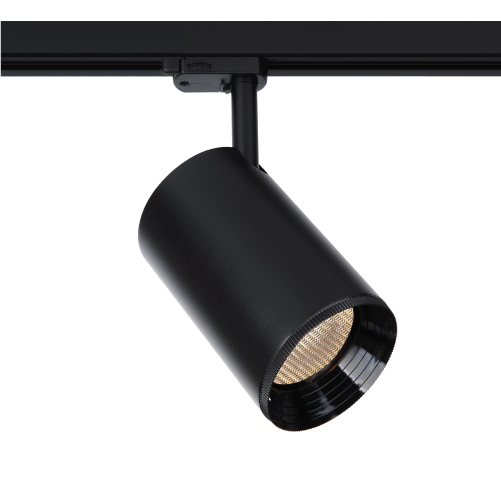

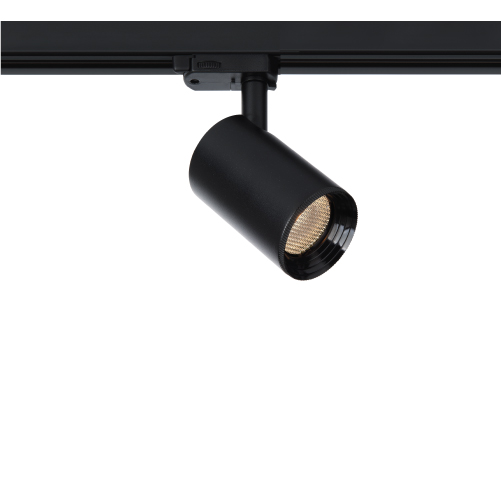

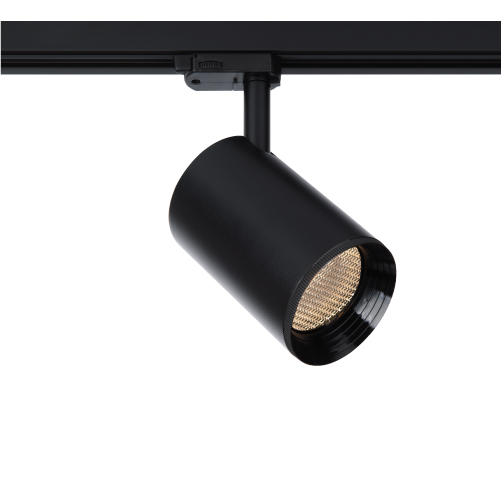

TL15W/TL16W/TL17W 3-circuits Wall Washer Tracklight
Suitable for W three-circuit track system, exquisite shape design, no visible radiator, made of die-cast aluminum body, built-in non-strobe driver electrical, using COB light module, providing a variety of standard color temperature options, with excellent wall washer light distribution and excellent color rendering, widely used in museums, art museums, commercial spaces, hotels, retail and other places.

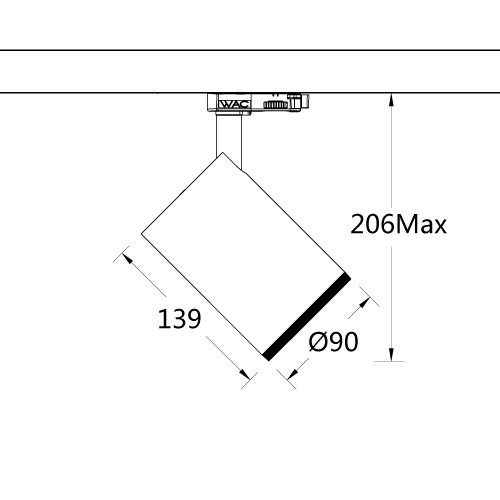

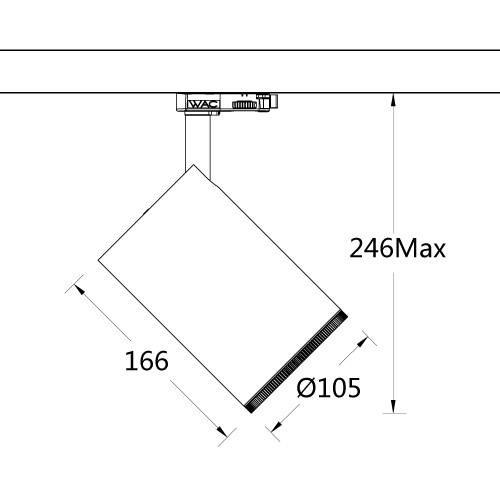

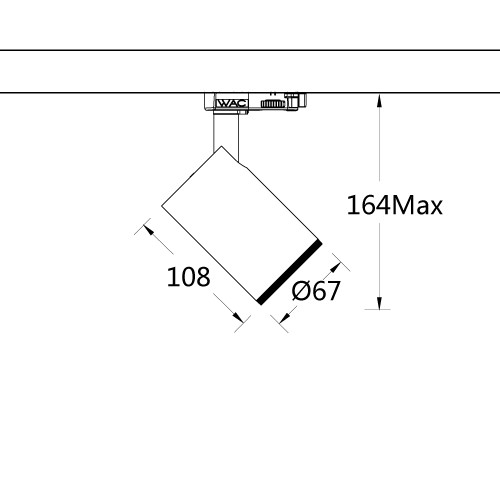

TL15W/TL16W/TL17W Line Drawing Preview
Model | LED | Dimming | Beam | CRI | CCT | Finish |
TL15W | LM06 COB 6W LM12 COB 12W | O On-board D 0-10V Dimming | W Wall washer | 9 90 | 27 2700K 30 3000K 40 4000K 50 5000K | WT White BK Black |
Model | LED | Dimming | Beam | CRI | CCT | Finish |
TL16W | LM18 COB 18W LM26 COB 26W | O On-board D 0-10V Dimming A DALI | W Wall washer | 9 90 | 27 2700K 30 3000K 40 4000K 50 5000K | WT White BK Black |
Model | LED | Dimming | Beam | CRI | CCT | Finish |
TL17W | LM34 COB 34W | O On-board D 0-10V Dimming A DALI | W Wall washer | 9 90 | 27 2700K 30 3000K 40 4000K 50 5000K | WT White BK Black |
Example: TL17WLM34-O-W930WT
