DLT01/DDT11 0.5"/1" Round Downlight

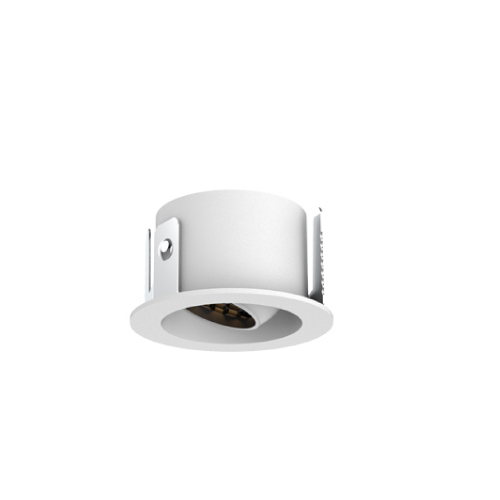

The VOLTA series mini downlight features a compact shape and delicate dimensions. With lens light distribution, it has precise light angle and ultimate anti-glare effect, which can be applied in hotels and commercial public space or other places.
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish | ||
DLT | 0 0.5” | 1 Round Trim
| LD01 LED 1W | T DMX512(24VDC) M MTB * N No Driver | 1 17° 2 24° 3 36° 6 60° | 27 2700K 30 3000K 35 3500K 40 4000K | B Black | BK Black | ||
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish | ||
DLT | 0 0.5” | 1 Round Trim
| LD01 LED 1W | T DMX512(24VDC) M MTB * N No Driver | 1 17° 2 24° 3 36° 6 60° | 27 2700K 30 3000K 35 3500K 40 4000K | W White | WT White | ||
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DDT
| 1 1” | 1 Round Trim
| LD02 LED 2W | E On-Off N No Driver
| 1 12° 2 24° 3 36° 5 55° | 27 2700K 30 3000K 35 3500K 40 4000K
| W White
| WT White
|
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DDT
| 1 1” | 1 Round Trim
| LD02 LED 2W | E On-Off N No Driver | 1 12° 2 24° 3 36° 5 55° | 27 2700K 30 3000K 40 4000K
| B Black | BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DDT
| 1 1” | 1 Round Trim
| LD05 LED 5W | E On-Off D 0-10V Dimming A DALI N No Driver
| 1 12° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K
| W White
| WT White
|
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DDT
| 1 1” | 1 Round Trim
| LD05 LED 5W | E On-Off D 0-10V Dimming A DALI N No Driver
| 1 12° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black
| BK Black
|
Example: DLT01-LD01N-230WWT. Note: factory standard for all angles is with honeycomb, except 60°. “MTB” need to order seperately, cannot connect to 220V directly.
