TL65S/TL66S/TL67S/ Highly integrated, elegant and simple, with unlimited talents, but don’t show off
WAC museum lighting high-end product line, the series continues WAC's consistent style, highly integrated, elegant and simple, with unlimited talents, but without showing off.

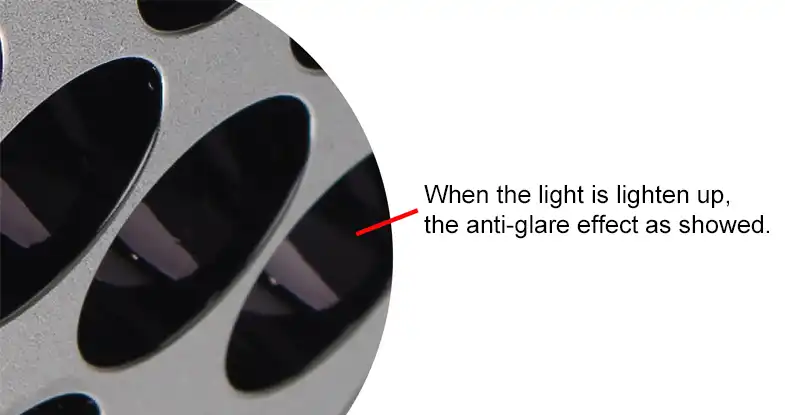

WAC LIGHTING has the industry's first SUBROSA technology. Accurately calculating and controlling light, deep anti-glare, greatly improving the light experience.
Ultra-narrow beam angle of 4°, up to 60°. Elliptical light distribution and wall-washing light distribution, "tailored" for different sizes of exhibits.Excellent stray light control, light and shadow flow, don't take over the host's place, make the details to the extreme.

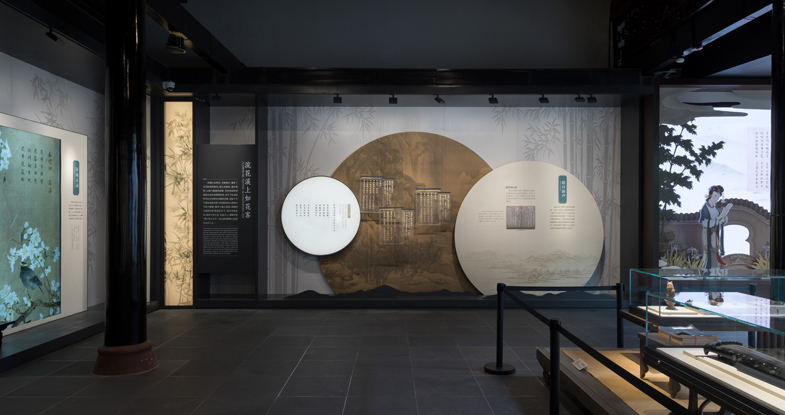

Liangzhu Museum
Model | LED | Dimming | Beam | CRI | CCT | Finish |
TL65S FALCON SQUARE | LD03 LED 3W | O On-boarding D 0-10V Dimming B Wireless A DALI | V 4° | 9 90 A 97 | 30 3000K 40 4000K | WT White BK Black |
Model | LED | Dimming | Beam | CRI | CCT | Finish |
TL65S FALCON SQUARE | LD08 LED 8W LD12 LED 12W | O On-boarding D 0-10V Dimming B Wireless A DALI | S 7° 1 14° 2 20° 3 30° 4 40° G 20*55° E 10*30° | 9 90 A 97 | 30 3000K 40 4000K | WT White BK Black |
Model | LED | Dimming | Beam | CRI | CCT | Finish |
TL66S FALCON SQUARE | LD12 LED 12W | O On-boarding D 0-10V Dimming B Wireless A DALI | V 4° | 9 90 A 97 | 30 3000K 40 4000K | WT White BK Black |
Model | LED | Dimming | Beam | CRI | CCT | Finish |
TL66S FALCON SQUARE | LD18 LED 18W LD27 LED 27W | O On-boarding D 0-10V Dimming B Wireless A DALI | S 7° 1 14° 2 20° 3 30° 4 40° G 20*55° E 10*30° | 9 90 A 97 | 30 3000K 40 4000K | WT White BK Black |
Model | LED | Dimming | Beam | CRI | CCT | Finish |
TL67S FALCON SQUARE | LD27 LED 27W | O On-boarding D 0-10V Dimming B Wireless A DALI | V 4° | 9 90 A 97 | 30 3000K 40 4000K | WT White BK Black |
Model | LED | Dimming | Beam | CRI | CCT | Finish |
TL67S FALCON SQUARE | LD32 LED 32W LD43 LED 43W | O On-boarding D 0-10V Dimming B Wireless A DALI | S 7° 1 14° 2 20° 3 30° 4 40° G 20*55° E 10*30° | 9 90 A 97 | 30 3000K 40 4000K | WT White BK Black |
Example: TL67SLD32-O-2930WT
