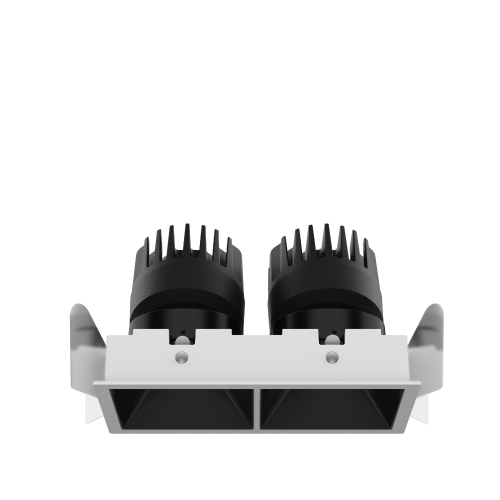

MTH35 3" Square Trim Multiple Spot Lights
ELANA Pro is a square, narrow-rimmed recessed combination luminaire that combines downlighting and angulation in one unit. The precise light distribution through the lens and the high-quality reflector provide a comfortable visual experience and ensure the integrity of the light spot. It is especially suitable for public spaces such as high-end hotels, commercial and office spaces.
The stability of fixed downlight and the flexibility of adjustable downlight, 2in1 fixture
Honeycomb + 40° anti-glare angle reflector, double guarantee, provide the ultimate comfortable visual experience
SieMatic Shanghai Flagship Store
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
MTH Multiple Downlight H series | 3 3” | 5 Rectangular Trim | 207 COB 2*7W 210 COB 2*10W 213 COB 2*13W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° 4 45° | 27 2700K 30 3000K 40 4000K | B Black S Specular | WT White |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
MTH Multiple Downlight H series | 3 3” | 5 Rectangular Trim | 213 COB 2*13W | A DALI N No Driver | 1 15° 2 24° 3 36° 4 45° | 27 2700K 30 3000K 40 4000K | B Black S Specular | WT White |
Example: MTH35-210-E230SWT, factory standard for 15 ° is with honeycomb, not for other beam angles.
