DDG21/DDG31 2/3" Round Adjustable Downlight

Adjustable Round Trim

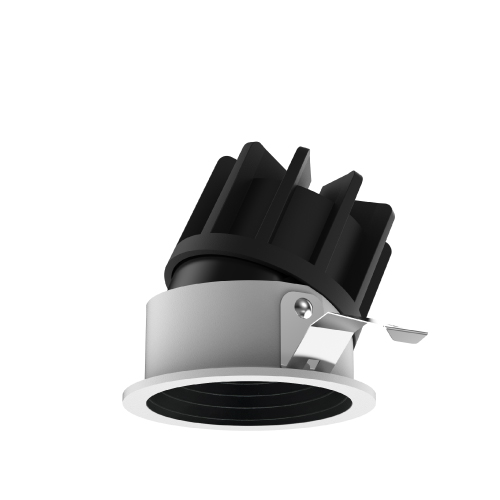

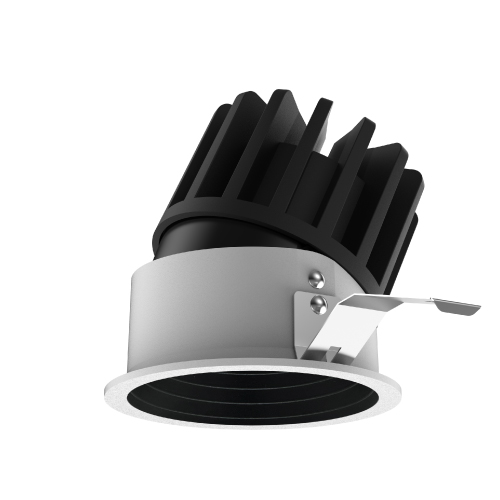

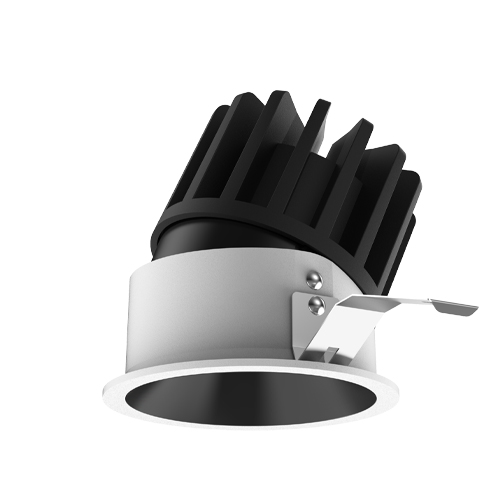

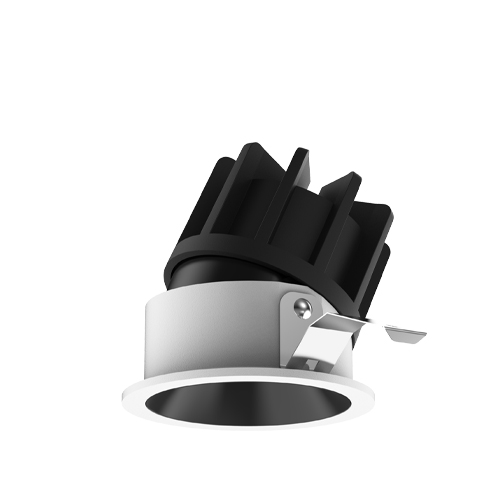

DDG21/DDG31 2/3" Round Adjustable Downlight

ELANA Series LED Narrow Edge Recessed Downlight is perfectly integrated with the ceiling after installation. With excellent anti-glare performance and color consistency control, it has a comfortable light effect with the main application in hotels and clubs and other indoor places.

Features
Specifications

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

DDG

Directional G series

2  2”

1 Round Trim

LM04 COB 4W

LM07 COB 7W

E  On-Off

D  0-10V Dimming

1    15°

2    24°

3    36°

5    50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

W White

S  Specular

T Black Step

H White Step


WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

DDG

Directional G series

2  2”

1 Round Trim

LM07 COB 07W

N No Driver

1    15°

2    24°

3    36°

5    50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

W White

S  Specular

T Black Step

H White Step

WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

DDG

Directional G series

3  3”

1 Round Trim

LM07 COB 7W

LM10 COB 10W

LM13 COB13W

E  On-Off

D  0-10V Dimming

1  15°

2  24°

3  36°

5  50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

W White

S  Specular

T Black Step

H White Step

WT  White

BK   Black

Model

Size

Trim

LED

Driver

Beam

CCT

Reflector

Finish

DDG

Directional G series

3  3”

1 Round Trim

LM13 COB 13W

N No Driver

1  15°

2  24°

3  36°

5  50°

27  2700K

30  3000K

35  3500K

40  4000K

50  5000K

B  Black

W White

S  Specular

T Black Step

H White Step

WT  White

BK   Black

Example: DDG31-LM13-E230SWT
