DLG21/DLG31 2/3"

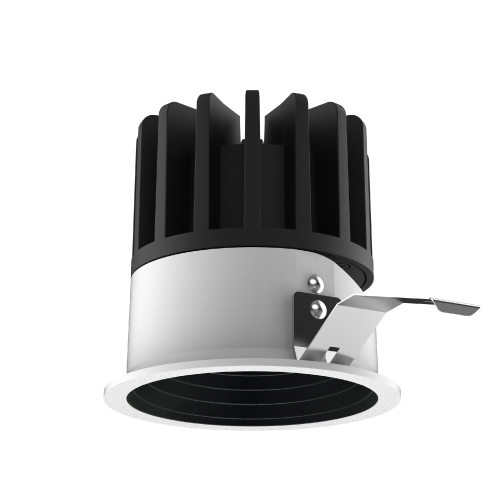

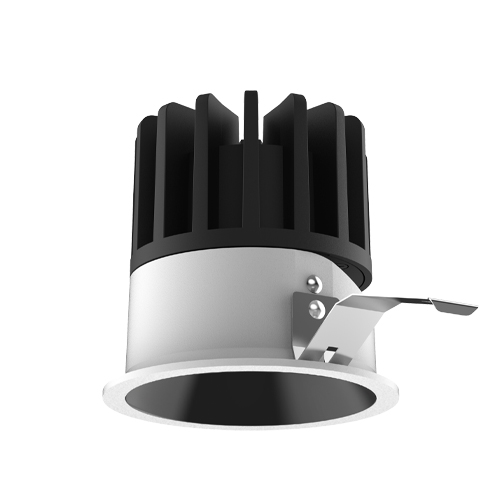

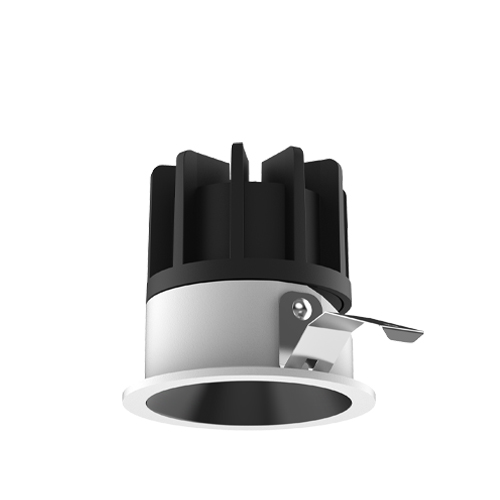

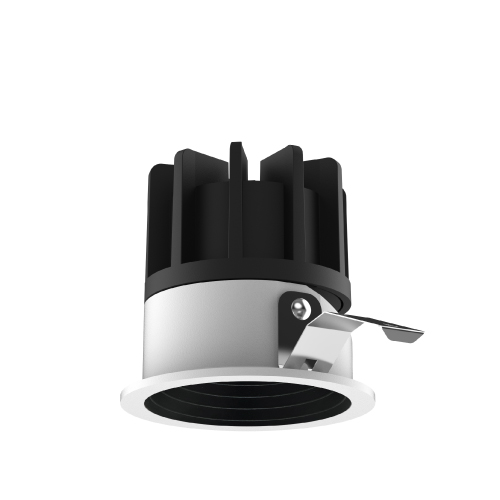

ELANA Series LED Narrow Edge Recessed Downlight is perfectly integrated with the ceiling after installation. With excellent anti-glare performance and color consistency control, it has a comfortable light effect with the main application in hotels and clubs and other indoor places.

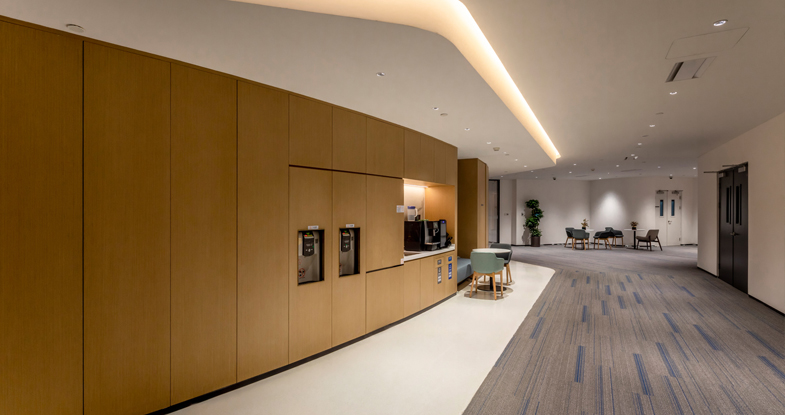

Sunshine Financial Center Building
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLG Downlight G series | 2 2” | 1 Round Trim | LM04 COB 4W LM07 COB 7W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black W White S Specular T Black Step H White Step | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLG Downlight G series | 2 2” | 1 Round Trim | LM07 COB 7W | N No Driver | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black W White S Specular T Black Step H White Step | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLG Downlight G series | 3 3” | 1 Round Trim | LM07 COB 7W LM10 COB 10W LM13 COB13W | E On-Off D 0-10V Dimming | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black W White S Specular T Black Step H White Step | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLG Downlight G series | 3 3” | 1 Round Trim | LM13 COB 13W | N No Driver | 1 15° 2 24° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black W White S Specular T Black Step H White Step | WT White BK Black |
Example: DLG31-LM10-E230SWT
