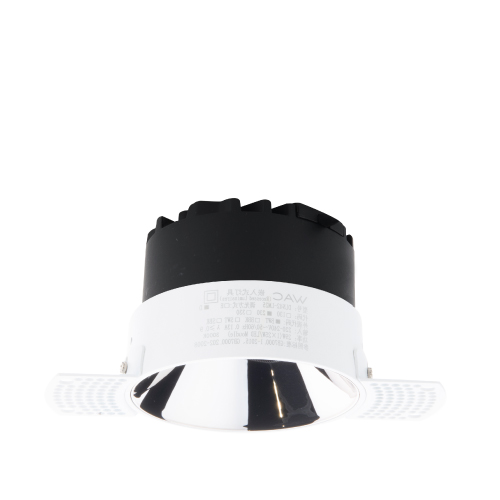

DLN34/DLN43 Round Trimless Anti-fog & Super Short Downlight
Can be used as anti-fog or short ceiling space. Modular design, the site can be freely disassembled and replace the reflector or mounting surface frame, to achieve a variety of specifications and free switching of light output. Optical aspects of the new hidden light technology, good anti-glare performance and color consistency control, with a comfortable light.
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLN Downlight N series | 3 3” | 4 Round Trimless
| LM07 COB 7W LM10 COB 10W LM13 COB 13W | E On-Off D 0-10 Dimming | N 13° 1 18° 2 28° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLN Downlight N series | 3 3” | 4 Round Trimless
| LM13 COB 13W | A DALI N No Driver | N 13° 1 18° 2 28° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLN Downlight N series | 4 4” | 4 Round Trimless
| LM08 COB 8W | E On-Off D 0-10 Dimming | S 8° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Model | Size | Trim | LED | Driver | Beam | CCT | Reflector | Finish |
DLN Downlight N series | 4 4” | 4 Round Trimless
| LM13 COB 13W LM18 COB 18W LM25 COB 25W | E On-Off D 0-10 Dimming | N 13° 1 18° 2 28° 3 36° 5 50° | 27 2700K 30 3000K 35 3500K 40 4000K 50 5000K | B Black S Specular | WT White BK Black |
Example: DLN34-LM07E-230SWT
Note: Factory standard for 8/13/18° is with honeycomb.
