EP3NI/EP3MI/EP3LI/24V DC/Φ80/Φ130/Φ160

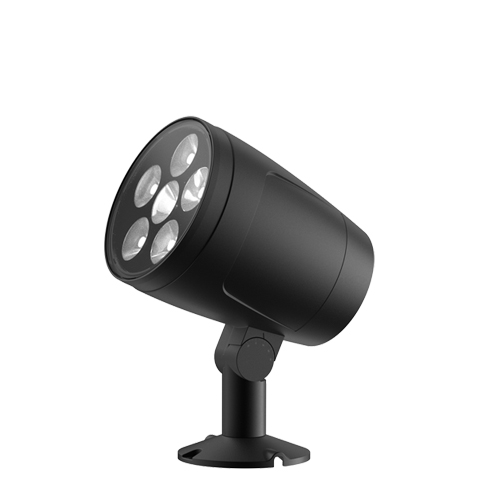

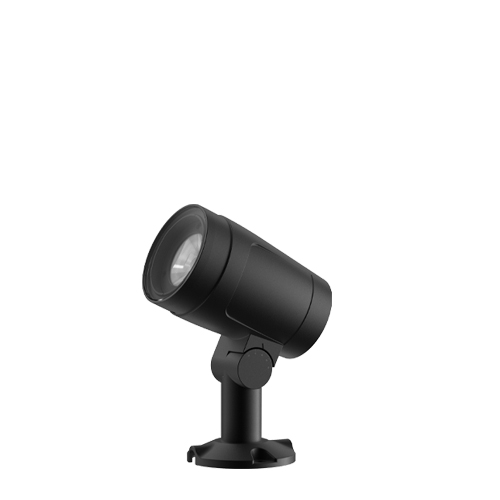

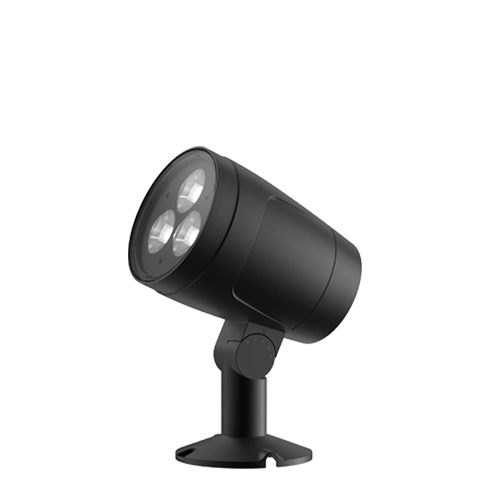

Utilizing the latest LED technology, the PANTHER series of luminaire features a low-profile design and high optical performance, available in a variety of sizes. The series supports vertical or horizontal mounting with precise adjustments in the direction of rotation. Recommended for architectural façade lighting or landscape spotlighting.

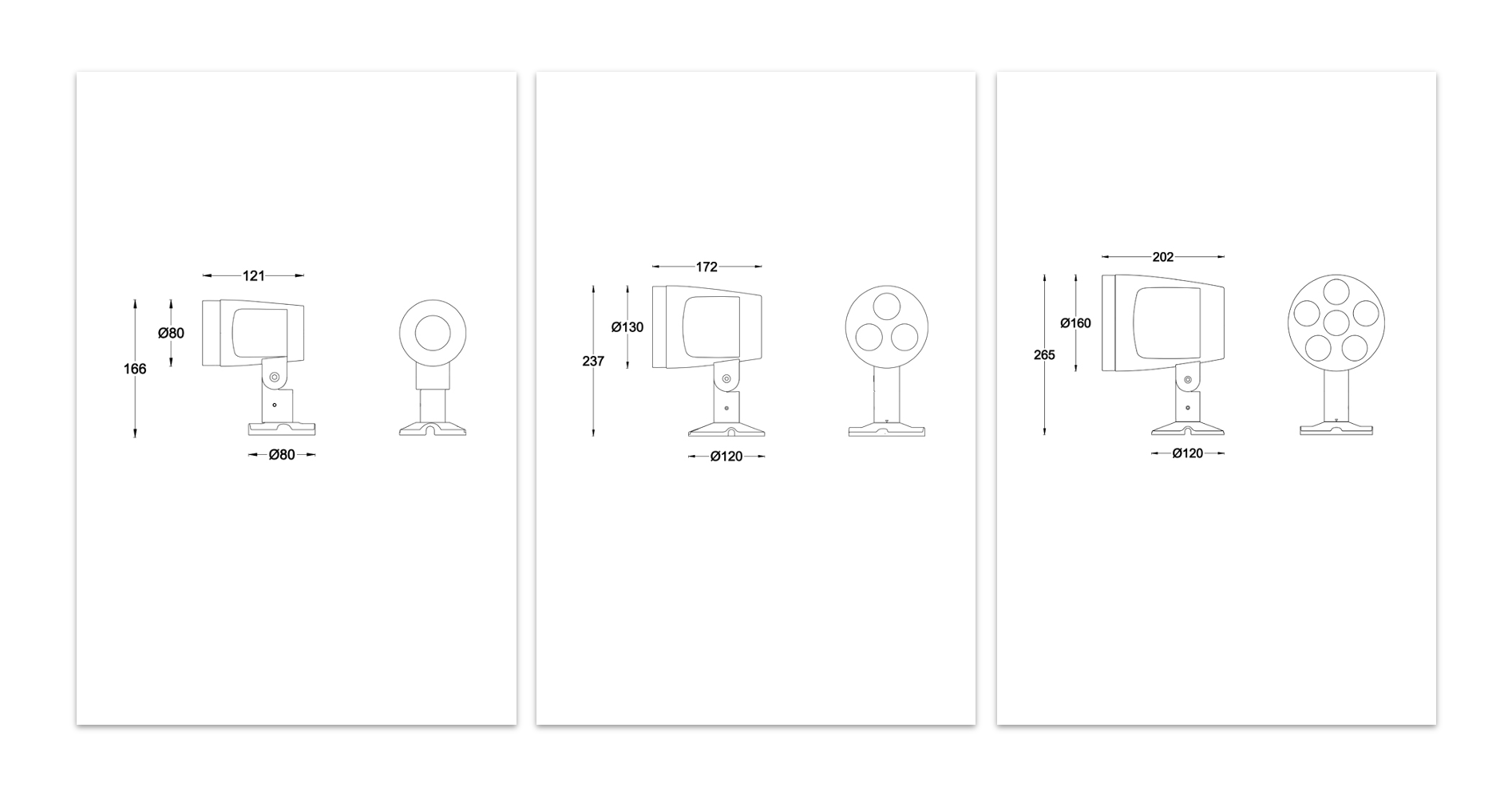

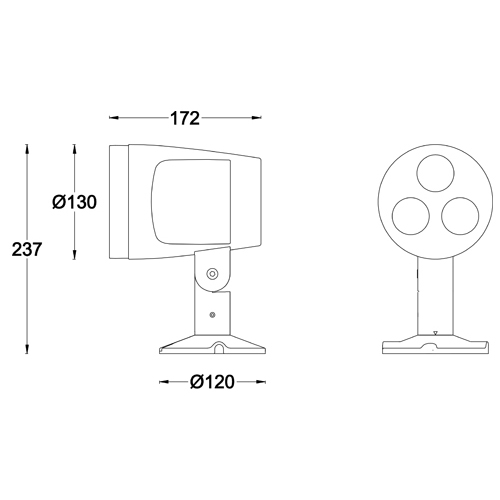

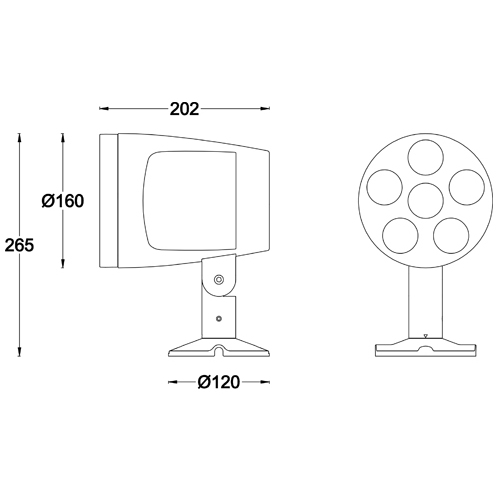

Φ80/Φ130/Φ160 Line Drawing Preview
| Model | Power (W) | LEDs (quantity) | Max Lumens(lm) | Control Systems | Beam | CCT | Finish |
EP3NI-07 | 5.5(Max) | 1 | 244 | MT DMX512 Dimming 24V DC Power Supply | 1 16° 2 25° 3 35° | F30 RGBW (W3000K) F40 RGBW (W4000K) F60 RGBW (W6000K) | BK Black |
| Model | Power (W) | LEDs (quantity) | Max Lumens(lm) | Control Systems | Beam | CCT | Finish |
EP3MI-20 | 20(Max) | 3 | 743 | MT DMX512 Dimming 24V DC Power Supply | 1 16° 2 25° 3 35° | F30 RGBW (W3000K) F40 RGBW (W4000K) F60 RGBW (W6000K) | BK Black |
| Model | Power (W) | LEDs (quantity) | Max Lumens(lm) | Control Systems | Beam | CCT | Finish |
EP3LI-40 | 31(Max) | 6 | 1566 | MT DMX512 Dimming 24V DC Power Supply | 1 16° 2 25° 3 35° | F30 RGBW (W3000K) F40 RGBW (W4000K) F60 RGBW (W6000K) | BK Black |
Example: EP3LI-40MT-1F30BK
