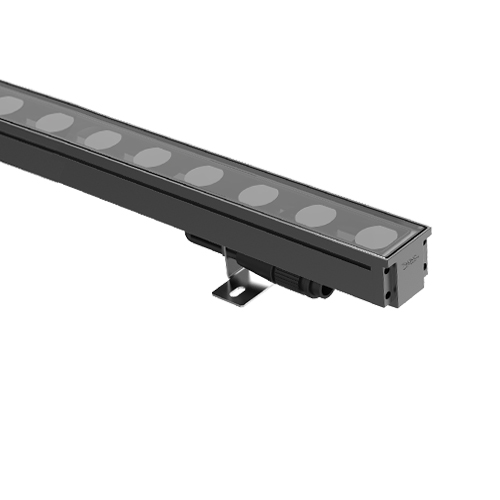

ELF505/ELF510 Medium Power Linear Light
The light is equipped with high-quality LED with strong luminous efficiency and long lifespan and lens with unique optical properties, combined with an equal-spaced arrangement design to ensure uniform light emission. With IP66 waterproof rating and DMX512 dimming control , the Mini Flood III series light cables come out from the bottom and meet the requirements of LEED outdoor lighting power consumption design.

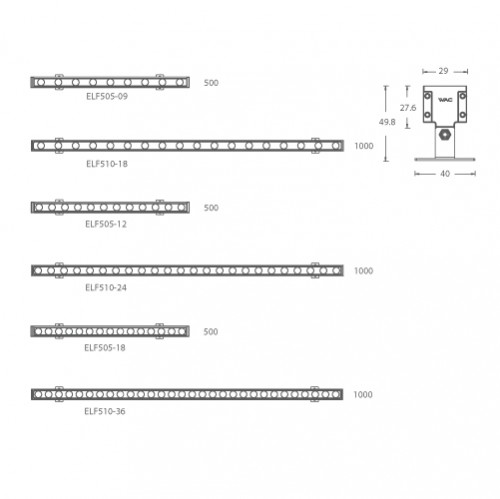

| Model | Length (mm) | Power (W) | LEDs (quantity) | Control Systems | Beam | CCT | Finish |
ELF505-09 | 500 | 09 (Max) | 9 | ET ON-OFF 24V DC Power Supply DT 0-10V Dimming 24V DC Power Supply MT DMX512 Dimming 24V DC Power Supply | 1 15° 2 23° 3 33° 4 41° F 23°*48° | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power (W) | LEDs (quantity) | Control Systems | Beam | CCT | Finish |
ELF505-12 | 500 | 12 (Max) | 12 | ET ON-OFF 24V DC Power Supply DT 0-10V Dimming 24V DC Power Supply MT DMX512 Dimming 24V DC Power Supply | 1 15° 2 23° 3 33° 4 41° F 23°*48° | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power (W) | LEDs (quantity) | Control Systems | Beam | CCT | Finish |
ELF505-18 | 500 | 18 (Max) | 15 | ET ON-OFF 24V DC Power Supply DT 0-10V Dimming 24V DC Power Supply MT DMX512 Dimming 24V DC Power Supply | 1 15° 2 23° 3 33° 4 41° F 23°*48° | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power (W) | LEDs (quantity) | Control Systems | Beam | CCT | Finish |
ELF510-18 | 1000 | 18 (Max) | 18 | ET ON-OFF 24V DC Power Supply DT 0-10V Dimming 24V DC Power Supply MT DMX512 Dimming 24V DC Power Supply | 1 15° 2 23° 3 33° 4 41° F 23°*48° | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power (W) | LEDs (quantity) | Control Systems | Beam | CCT | Finish |
ELF510-24 | 1000 | 24 (Max) | 24 | ET ON-OFF 24V DC Power Supply DT 0-10V Dimming 24V DC Power Supply MT DMX512 Dimming 24V DC Power Supply | 1 15° 2 23° 3 33° 4 41° F 23°*48° | 27 2700K 30 3000K 40 4000K | BK Black |
| Model | Length (mm) | Power (W) | LEDs (quantity) | Control Systems | Beam | CCT | Finish |
ELF510-36 | 1000 | 36 (Max) | 30 | ET ON-OFF 24V DC Power Supply DT 0-10V Dimming 24V DC Power Supply MT DMX512 Dimming 24V DC Power Supply | 1 15° 2 23° 3 33° 4 41° F 23°*48° | 27 2700K 30 3000K 40 4000K | BK Black |
Example: ELF505-09ET-127BK
